VN920-B5

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Min : 5.5 V
Supply Current : 25 mA
Maximum Operating Temperature : + 150 C
Maximum Power Dissipation : 96100 mW
Package / Case : P2PAK
Type : Single Channel High Side Solid State Relay

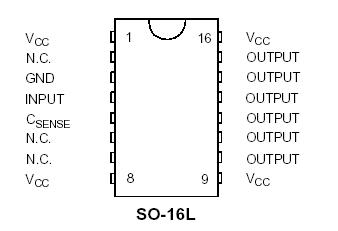

Pinout




Specifications

Symbol	Parameter	Value			Unit
		PENTAWATT	P2PAK	SO-16L
VCC	DC Supply Voltage	41			V
-VCC	Reverse DC Supply Voltage	-0.3			V
- IGND	DC Reverse Ground Pin Current	-200			mA
IOUT	DC Output current	Internally Limited			A
-IOUT	Reverse DC Output Current	-21			A
IIN	DC Input Current	+/- 10			mA
VCSENSE	Current Sense Maximum Voltage	-3 +15			V V
VESD	Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - CURRENT SENSE - OUTPUT - VCC	4000 2000 5000 5000			V V V V
EMAX	Maximum Switching Energy (L=0.25mH; RL=0; Vbat=13.5V; Tjstart=150; IL=45A)		364	352	mJ
PTOT	Power dissipation TC25°C	96.1	96.1	8.3	W
Tj	Junction operating temperature	Internally Limited
Tc	Case Operating Temperature	- 40 to 150
TSTG	Storage Temperature	-55 to 150

Description

The VN920, VN920-B5, VN920SO is a monolithic device made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active V_CC pin voltage clamp protects the VN920, VN920-B5, VN920SO device against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. The  VN920, VN920-B5, VN920SO device integrates an analog current sense output which delivers a current proportional to the load current. Device automatically turns off in case of ground pin disconnection.

Parameters:

Technical/Catalog Information	VN920-B5
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	P²PAK (4 leads + Tab)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	16 mOhm
Current - Output / Channel	45A
Current - Peak Output	-
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	VN920 B5 VN920B5 497 2678 5 ND 49726785ND 497-2678-5
