VN770K

Power Driver ICs Quad 40V 9A Hi-Side

product image

VN770K Picture
SeekIC No. : 00539596 Detail

VN770K: Power Driver ICs Quad 40V 9A Hi-Side

floor Price/Ceiling Price

US $ 1.28~1.79 / Piece | Get Latest Price
Part Number:
VN770K
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~380
  • 380~500
  • 500~1000
  • 1000~2000
  • Unit Price
  • $1.79
  • $1.61
  • $1.36
  • $1.28
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : H-Bridge Driver Rise Time : 14000 ns
Fall Time : 11000 ns Supply Voltage - Min : 5.5 V
Supply Current : 25 mA Maximum Power Dissipation : 6000 mW
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SO-28 Packaging : Tube

Description

Product :
Supply Voltage - Max :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Min : 5.5 V
Supply Current : 25 mA
Maximum Operating Temperature : + 150 C
Package / Case : SO-28
Type : H-Bridge Driver
Maximum Power Dissipation : 6000 mW
Rise Time : 14000 ns
Fall Time : 11000 ns


Pinout

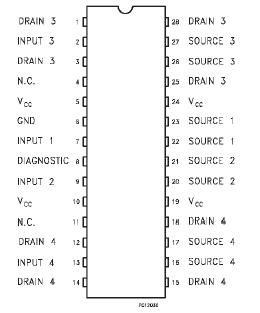

  Connection Diagram


Specifications

Symbol Parameter Value Unit

VCC

DC Supply Voltage

41 V

-VCC

Reverse Supply Voltage

-0.3 V

- IGND

DC Reverse Ground Pin Current

-200

mA

IOUT

Output current

Internally Limited A

- IOUT

Reverse DC Output Current

-6

A

IIN

Input Current

+/- 10 mA
Istat

DC Status Current

+/- 10 mA
VESD

Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF)
- INPUT
- STATUS
- OUTPUT
- VCC

4000
2000
5000
5000
V
V
V
V

Ptot

Power dissipation at Tc=25°C

6

W

Tj

Junction operating temperature

Internally Limited

Tc

Case Operating Temperature

- 40 to 150

TSTG

Storage Temperature

-55 to 150




Description

The VN770K is a device formed by three monolithic chips housed in a standard SO-28 package: a double high side and two low side switches. Both the double high side and low side switches are made using |STMicroelectronics VIPower™ M0-3 Technology. This VN770K device is suitable to drive a DC motor in a bridge configuration as well as to be used as a quad switch for any low voltage application. The  VN770K dual high side switches have built-in thermal shutdown to protect the chips from overtemperature and current limiter blocks to protect the device from short circuit. Status output is provided to indicate open load in off and on state and overtemperature.The low side switches are two OMNIFET II types (fully autoprotected Power MOSFET in VIPower™ technology). They have built-in thermal shutdown,linear current limitation and overvoltage clamping.Fault feedback for thermal intervention can be detected by monitoring the voltage at the input pin.




Parameters:

Technical/Catalog InformationVN770K
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / Case28-SOIC (7.5mm Width)
Mounting TypeSurface Mount
TypeH Bridge
Voltage - Supply5.5 V ~ 36 V
On-State Resistance160 mOhm
Current - Output / Channel9A
Current - Peak Output-
PackagingTube
Input TypeNon-Inverting
Number of Outputs4
Operating Temperature-40°C ~ 150°C
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VN770K
VN770K
