VN751PT

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Maximum Power Dissipation :
Package / Case :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Min : 5.5 V
Maximum Operating Temperature : + 150 C
Type : High Side
Supply Current : 1.8 mA


Features:

CMOS compatible input
Thermal shutdown
Shorted load protection
Undervoltage and overvoltage shutdown
Protection against loss of ground
Very low stand-by current
Compiance to 61000-4-4 IEC test up to 4KV

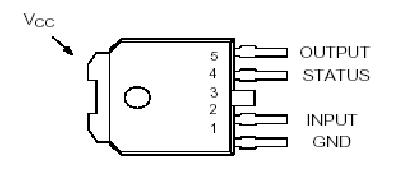

Pinout




Specifications

Rating	Pin	Symbol	Value	Unit
Power Dissipation Case 221A (TO220) (TJ = +25°C) Thermal Resistance, JunctiontoAmbient Thermal Resistance, JunctiontoCase Case 936 (D2PAK) (TJ = +25°C) Thermal Resistance, JunctiontoAmbient Thermal Resistance, JunctiontoCase		PD RqJA RqJC PD RqJA RqJC	Internally Limited 65 5.0 Internally Limited 70 5.0	W °C/W °C/W W °C/W °C/W
Storage Temperature Range		Tstg	65 to 150	°C
Minimum ESD Rating (Human Body Model: C = 100pF, R = 1.5 k)			3.0	KV
Lead Temperature (Soldering, 10 sec.)			260	°C
Maximum Junction Temperature		TJ	150	°C
Maximum Supply Voltage		Vin		°C

Description

The VN751PT is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. Device automatically turns off in case of ground pin disconnection. This VN751PT device is especially suitable for industrial applications in norms conformity with IEC 61131-2 (Programmable Controllers International Standard)

Parameters:

Technical/Catalog Information	VN751PT
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PPAK (4 leads + tab)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	60 mOhm
Current - Output / Channel	2.5A
Current - Peak Output	6A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 125°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VN751PT VN751PT 497 6808 5 ND 49768085ND 497-6808-5
