Features: · CMOS COMPATIBLE INPUT· ON STATE OPEN LOAD DETECTION· OFF STATE OPEN LOAD DETECTION· SHORTED LOAD PROTECTION· UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN·PROTECTION AGAINST LOSS OF GROUND· VERY LOW STAND-BY CURRENT·REVERSE BATTERY PROTECTION (*)PinoutSpecifications Symbol Parameter ...

product image

VN750PEP Picture
See larger image
SeekIC No. : 004542408 Detail

VN750PEP: Features: · CMOS COMPATIBLE INPUT· ON STATE OPEN LOAD DETECTION· OFF STATE OPEN LOAD DETECTION· SHORTED LOAD PROTECTION· UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN·PROTECTION AGAINST LOSS OF GROUND· VERY...

VN750PEP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VN750PEP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· CMOS COMPATIBLE INPUT
· ON STATE OPEN LOAD DETECTION
· OFF STATE OPEN LOAD DETECTION
· SHORTED LOAD PROTECTION
· UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN
·PROTECTION AGAINST LOSS OF GROUND
· VERY LOW STAND-BY CURRENT
·REVERSE BATTERY PROTECTION (*)


Pinout

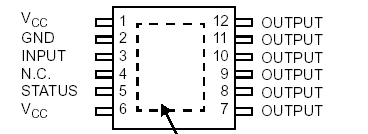

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 DC Supply Voltage
41
V
- VCC
 Reverse DC Supply Voltage
-0.3
V
- Ignd
 DC Reverse Ground Pin Current
-200
mA
IOUT
 DC Output Current
Internally limited
A
- IOUT
 Reverse DC Output Current
-6
A
IIN
 DC Input Current
+/- 10
mA
ISTAT
 DC Status Current
+/- 10
mA
VESD
 Electrostatic Discharge (Human Body Model: R=1.5KW; C=100pF)
- INPUT
- STATUS
- OUTPUT
- VCC
4000
4000
5000
5000
V
V
V
V
Ptot
 Power Dissipation TC=25
74
W
Tj
 Junction Operating Temperature
Internally limited
Tc
 Case Operating Temperature
- 40 to 150
Tstg
 Storage Temperature
- 55 to 150



Description

The VN750PEP is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground.Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protect the device against overload.

The device VN750PEP detects open load condition both is on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.
