VN610SP-E

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Min : 5.5 V
Maximum Operating Temperature : + 150 C
Type : High Side
Package / Case : PowerSO-10
Supply Current : 0.01 mA
Maximum Power Dissipation : 139000 mW


Features:

OUTPUT CURRENT: 45 A
CMOS COMPATIBLE INPUT
PROPORTIONAL LOAD CURRENT SENSE
UNDERVOLTAGE AND OVERVOLTAGEn SHUT-DOWN
OVERVOLTAGE CLAMP
THERMAL SHUT DOWN
CURRENT LIMITATION
VERY LOW STAND-BY POWER DISSIPATION
PROTECTION AGAINST:
LOSS OF GROUND AND LOSS OF VCC
REVERSE BATTERY PROTECTION (*)
IN COMPLIANCE WITH THE 2002/95/EC EUROPEAN DIRECTIVE

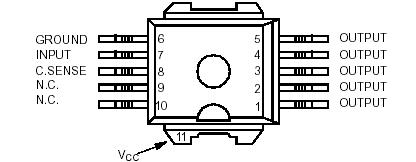

Pinout




Specifications

Parameter	Symbol	Value	Units
DC supply voltage (Overvoltage protected)	VCC	45	V
DC ground pin reverse current TRAN Ground pin reverse current pulse duration < 1ms)	VC	- 0.3	MA
DC reverse ground pin current	-IGND	- 200	A
DC output current	IOUT	Internally limited	mA
Reverse DC output current	- IOUT	- 21	mA
DC input current	IIN	+/- 10	mA
Maximum switching energy (L=1.5mH; RL=0Ω; Vbat=13.5V; Tjstart=150°C; IOUT = IlimL(Typ.) )	ICSD	51	mJ
Electrostatic Discharge (Human Body Model: R=1.5K C=100pF) INPUT STATUS STAT_DIS OUTPUT V VCC CC	-ICSENSE	4000 4000 4000 5000 5000	V V V V V
Junction Operating Temperature	VESD	750	°C
Case operating temperature	VESD	- 40 to 150	°C
Storage temperature	Tj	- 55 to 150	°C

Description

The VN610SP-E is a monolithic device made using STMicroelectronics VIPower M0-3 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device VN610SP-E integrates an analog current sense which delivers a current proportional to the load current (according to a known ratio). Active current limitation combined with thermal shut-down and automatic restart protect the device against overload. Device automatically turns off in case of ground pin disconnection.
