VN5770AK-E

Solid State Relays Quad smart power solid state relay

product image

VN5770AK-E Picture
SeekIC No. : 0096640 Detail

VN5770AK-E: Solid State Relays Quad smart power solid state relay

floor Price/Ceiling Price

Part Number:
VN5770AK-E
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount

Description

Mounting Style :
Control Voltage Range :
Load Voltage Rating :
Load Current Rating :
Contact Form :
Output Device :
Package / Case :
Product Type : PCB Mount


Features:

General features Inrush current management by active power limitation on the high side switches Very low stand-by current Very low electromagnetic susceptibility In compliance with the 2002/95/EC European directive Protection High side drivers undervoltage shutdown Overvoltage clamp Output current limitation High and low side overtemperature shutdown Short circuit protection ESD protection Diagnostic functions Proportional load current sense Thermal shutdown indication on both the high and low side switches


Pinout

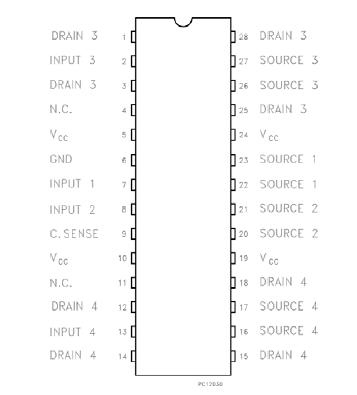

  Connection Diagram


Specifications

Parameter
Symbol
Value
Units
DC supply voltage (Overvoltage protected)
VCC
45
V
DC ground pin reverse current
TRAN Ground pin reverse current
pulse duration < 1ms)
VC
- 0.3
MA
DC reverse ground pin current
-IGND
- 200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
- 21
mA
DC input current

IIN

+/- 10
mA
Maximum switching energy
(L=1.5mH; RL=0Ω; Vbat=13.5V; Tjstart=150°C; IOUT =
IlimL(Typ.) )
ICSD
51
mJ

Electrostatic Discharge (Human Body Model: R=1.5K
C=100pF) INPUT
STATUS
STAT_DIS
OUTPUT
V VCC CC
-ICSENSE
4000
4000
4000
5000
5000
V
V
V
V
V
Junction Operating Temperature
VESD
750
°C
Case operating temperature
VESD
- 40 to 150
°C
Storage temperature
Tj
- 55 to 150
°C



Description

The VN5770AK-E is a device formed by three monolithic chips housed in a standard SO-28 package: a double high side and two low side switches. The double high side is made using STMicroelectronics VIPower™ M0-5 Technology, while the low side switches are fully protectedVIPower™ M0-3 OMNIFET II.

This device VN5770AK-E is suitable to drive a DC motor in a bridge configuration as well as to be used as a quad switch for any low voltage application. The dual high side switches integrate built-in nonlatching thermal shutdown with thermal hysteresis. An output current limiter protects the device in overload condition.

In the case of long overload duration, the device VN5770AK-E limits the dissipated power to a safe level up to thermal shut-down intervention. An analog current sense pin delivers a current proportional to the load current (according to a known ratio) and indicates overtemperature shutdown of the relevant high side switch through a voltage flag.

The low side switches VN5770AK-E have built-in non-latching thermal shutdown with thermal hysteresis, linear current limitation and overvoltage clamping. Fault feedback for overtemperature shutdown of the low side switch is indicated by the relevant input pin current consumption going up to the fault sink current flag.




Parameters:

Technical/Catalog InformationVN5770AK-E
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / Case28-SOIC (7.5mm Width)
Mounting TypeSurface Mount
TypeH Bridge
Voltage - Supply4.5 V ~ 36 V
On-State Resistance160 mOhm
Current - Output / Channel8.5A
Current - Peak Output-
PackagingTube
Input TypeNon-Inverting
Number of Outputs4
Operating Temperature-
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VN5770AK E
VN5770AKE
