VN540-12-E

On Time (Max) :
Off Time (Max) :
Operating Supply Voltage :
Maximum Operating Temperature :
Number of Outputs : 1
Mounting Style : Through Hole
Supply Current (Max) : 1 mA
On Resistance (Max) : 0.05 Ohms
Package / Case : PENTAWATT V-5


Features:

OUTPUT CURRENT (CONTINUOUS) : 2.8A
DIGITAL INPUT CLAMPED AT 32V
PROTECTION AGAINST:
LOSS OF GROUND
SHORTED LOAD AND OVERTEMPERATURE
BUILT-IN CURRENT LIMITER
UNDERVOLTAGE SHUT-DOWN
OPEN DRAIN DIAGNOSTIC OUTPUT
FAST DEMAGNETIZATION OF INDUCTIVE LOADS

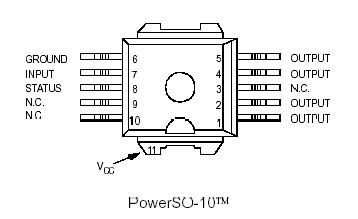

Pinout




Specifications

Parameter	Symbol	Value	Units
DC supply voltage	VCC	41	V
Reverse DC supply voltage	VC	0.3	MA
DC reverse ground pin current	-IGND	200	A
DC output current	IOUT	Internally limited	mA
Reverse DC output current	- IOUT	24	mA
DC input current	IIN	-1 to 10	mA
DC current sense disable input current	ICSD	-1 to 10
Current sense maximum voltage	-ICSENSE	VCC - 41 to +VCC	°C/W
Single pulse avalanche energy	VCSENSE	500	mJ

Description

The VN540-E, VN540SP-E, VN540-12-E are monolithic devices designed in STMicroelectronics VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active current limitation avoids the system power supply dropping in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature. The open drain diagnostic output indicates overtemperature conditions.

Parameters:

Technical/Catalog Information	VN540-12-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	Pentawatt-5 (Straight Leads, Staggered Depth)
Mounting Type	Through Hole
Type	High Side
Voltage - Supply	10 V ~ 36 V
On-State Resistance	50 mOhm
Current - Output / Channel	2.8A
Current - Peak Output	4A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-25°C ~ 85°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VN540 12 E VN54012E 497 6167 5 ND 49761675ND 497-6167-5
