VN5050J-E

Power Driver ICs Sngl Ch HiSide Drivr

product image

VN5050J-E Picture
SeekIC No. : 00536387 Detail

VN5050J-E: Power Driver ICs Sngl Ch HiSide Drivr

floor Price/Ceiling Price

US $ .85~1.24 / Piece | Get Latest Price
Part Number:
VN5050J-E
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $1.24
  • $1.1
  • $.95
  • $.85
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Driver ICs - Various Type : High Side Driver
Supply Voltage - Max : 36 V Supply Voltage - Min : 4.5 V
Supply Current : 0.005 mA Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Packaging : Tube

Description

Rise Time :
Fall Time :
Maximum Power Dissipation :
Package / Case :
Supply Voltage - Max : 36 V
Mounting Style : SMD/SMT
Supply Voltage - Min : 4.5 V
Packaging : Tube
Product : Driver ICs - Various
Maximum Operating Temperature : + 150 C
Supply Current : 0.005 mA
Type : High Side Driver


Features:

Max supply voltage
V CC
41V
Operating voltage range
VCC
4.5 to 36V
Max On-State resistance (per ch.)
RON
50 mΩ
Current limitation (typ)
ILIMH
19 A
Off state supply current
IS
2 µA(*)

Main
Inrush current active management by
power limitation
Very low stand-by current
3.0V CMOS compatible input
Optimized electromagnetic emission
Very low electromagnetic susceptibility
In compliance with the 2002/95/EC
European directive
Diagnostic functions
Open drain status output
On state open load detection
Off state open load detection
Thermal shutdown indication
Protections
Undervoltage shut-down
Overvoltage clamp
Output stuck to VCC detection
Load current limitation
Self limiting of fast thermal transients
Protection against loss of ground andof VCC
Thermal shut down
Reverse battery protection (see Figure



Pinout

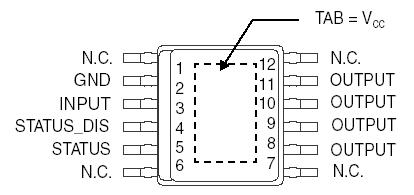

  Connection Diagram


Specifications

Parameter
Symbol
Value
Units
DC supply voltage
VCC
41
V
Reverse DC supply voltage
VC
0.3
MA
DC reverse ground pin current
-IGND
200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
24
mA
DC input current

IIN

-1 to 10
mA
DC current sense disable input current
ICSD
-1 to 10
Current sense maximum voltage
-ICSENSE
VCC - 41 to +VCC
°C/W
Maximum switching energy (single pulse)
(L = 0.8mH; RL = 0Ω; Vbat = 13.5V; Tjstart = 150°C;
IOUT = IlimL(Typ.) )
VCSENSE
140
mJ



Description

The VN5050J-E is a monolithic device made using STMicroelectronics VIPower technology. VN5050J-E is intended for driving resistive or inductive loads with one side connected to ground. Active V VCC CC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). The device detects open load condition both in on and off state, when STAT_DIS is left open or driven low.

Output shorted to V VCC CC is detected in the off state. When STAT_DIS is driven high, the STATUS pin of VN5050J-E is in a high impedance condition.Output current limitation protects the device in overload condition. In case of long duration overload, the device limits the dissipated power to safe level up to thermal shut-down intervention.Thermal shutdown with automatic restart allows the device to recover normal operation as soon as fault condition disappears.




Parameters:

Technical/Catalog InformationVN5050J-E
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / CasePowerSSO-12
Mounting TypeSurface Mount
TypeHigh Side
Voltage - Supply4.5 V ~ 36 V
On-State Resistance50 mOhm
Current - Output / Channel-
Current - Peak Output19A
PackagingTube
Input TypeNon-Inverting
Number of Outputs1
Operating Temperature-40°C ~ 150°C
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VN5050J E
VN5050JE
