VMX51C900

Features: · 80C51/80C52 pin compatible· 8KB on-chip Flash memory· 256 Bytes on-chip data RAM· 4 8-bit I/O ports and 1 4-bit I/O port· 4-Channel, 8-bit A/D Converter· LCD Driver: 14-Segment x 4-Common· 2-PWM Outputs· UART serial port· 3 16-bit Timers/Counters· Watchdog Timer· BCD arithmetic + 8-bit...

product image

VMX51C900 Picture
See larger image
SeekIC No. : 004542335 Detail

VMX51C900: Features: · 80C51/80C52 pin compatible· 8KB on-chip Flash memory· 256 Bytes on-chip data RAM· 4 8-bit I/O ports and 1 4-bit I/O port· 4-Channel, 8-bit A/D Converter· LCD Driver: 14-Segment x 4-Commo...

VMX51C900 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VMX51C900
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 80C51/80C52 pin compatible
· 8KB on-chip Flash memory
· 256 Bytes on-chip data RAM
· 4 8-bit I/O ports and 1 4-bit I/O port
· 4-Channel, 8-bit A/D Converter
· LCD Driver: 14-Segment x 4-Common
· 2-PWM Outputs
· UART serial port
· 3 16-bit Timers/Counters
· Watchdog Timer
· BCD arithmetic + 8-bit Unsigned Multiply and Division
· 2 levels of Interrupt Priority and nested Interrupts
· Power saving modes
· Low EMI (ALE disable)
· Code protection function
· Operates at a clock frequency of up to 25MHz
· Industrial Temperature range (-40°C to +85°C)
· 5V version available

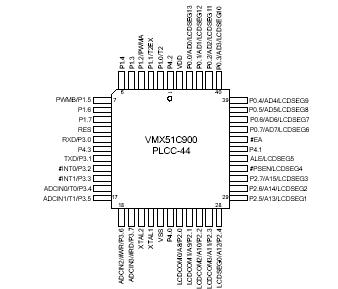

Pinout

Connection Diagram


Description

The VMX51C900 is an 8-bit microcontroller with 8KB of Flash memory, 256 bytes of RAM and based on the architecture of the standard 80C51 microcontroller. It includes extra features such as a 4 Channel 8-bit A/D Converter, 2 PWM outputs and 14 segment x 4 common LCD driver.

The VMX51C900 hardware features make it a versatile and cost-effective controller for a wide range of embedded applications. The Flash memory can be programmed using a parallel programmer available from Ramtron. Support is also available from 3rd party commercial programmer manufacturers.

The VMX51C900 is available in PLCC-44, QFP-44 and DIP-40 packages and operates over the industrial temperature range.
