VMX1C1020

Features: o 8051 Compatible RISC performance Processor.o Integrated Debuggero 56KB Flash Program Memoryo 1280 Bytes of RAMo MULT/ACCU unit including a Barrel Shiftero Provides DSP capabilitieso 2 UART Serial Portso 2 Baud Rate Generators for UARTso Differential Transceiver connected to UART1J1708/...

product image

VMX1C1020 Picture
See larger image
SeekIC No. : 004542333 Detail

VMX1C1020: Features: o 8051 Compatible RISC performance Processor.o Integrated Debuggero 56KB Flash Program Memoryo 1280 Bytes of RAMo MULT/ACCU unit including a Barrel Shiftero Provides DSP capabilitieso 2 UA...

VMX1C1020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VMX1C1020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

o 8051 Compatible RISC performance Processor.
o Integrated Debugger
o 56KB Flash Program Memory
o 1280 Bytes of RAM
o MULT/ACCU unit including a Barrel Shifter
o Provides DSP capabilities
o 2 UART Serial Ports
o 2 Baud Rate Generators for UARTs
o Differential Transceiver connected to UART1
J1708/RS-485/RS-422 compatible.
o Enhanced SPI interface (Master/Slave)
o Fully Configurable
o Controls up to 4 slave devices
o I2C interface
o 28 General Purpose I/Os
o 2 External Interrupt Inputs
o Interrupt on Port 1 pin change
o 3, 16-bit Timers/Counters
o 4 Compare & Capture Units with 3 Capture Inputs
o 4 PWM outputs, 8-bit / 16-bit resolution
o 4 ext. + 3 int. Channel 12-bit A/D Converter
o Conversion rate up to 10kHz
o 0-2.7 Volt Input range Continuous /
One-Shot operation
o Single or 4-channel automatic
sequential conversions
o On-Chip Voltage Reference
o Programmable Current Source
o Operational Amplifier
o 2 Digital Potentiometers
o 1 Digitally Controlled Switch
o Power Saving Features + Clock Control
o Power-on Reset with Brown-Out Detect
o Watchdog Timer FIGURE 2: VMX51C1020 QFP-64 PACKAGE PINOUT


Application

o Automotive Applications
o Industrial Controls / Instrumentation
o Consumer Products
o Intelligent Sensors
o Medical Devices


Pinout

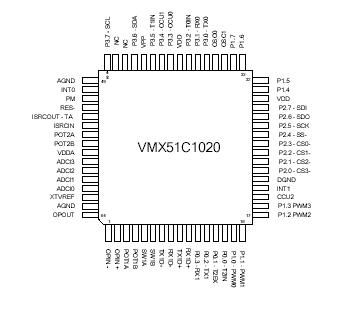

Connection Diagram


Specifications

VDD to DGND ......................................0.3V, +6V
VDDA to DGND ......................................-0.3V, +6V
AGND to DGND .................................0.3V, +0.3V
VDD to VDDA .....................................-0.3V, +0.3V
ADCI (0-3) to AGND.................. -0.3V, VDDA+0.3V
XTVREF to AGND ........................-0.3V, VDDA+0.3V
Digital Input Voltage to...............-0.3V, VDD+0.3V
DGND....................................................RS422/485
Minimum and Maximum Voltages...............-2V, +7V
Digital Output Voltage to.............0.3V, VDD+0.3V
DGND..........................................VPP to DGND +13V
Power Dissipation.................§ To +70°C 1000mW
Operating Temperature
Range................................................0° to +70°C
Storage Temperature Range ....65°C to +110°C
Lead Temperaturesoldering, 10sec)...........+300°C



Description

The VMX51C1020 is a fully integrated mixed-signal microcontroller that provides a "one-chip solution" for a broad range of signal conditioning, data acquisition, processing, and control applications. The VMX51C1020 is based on a powerful single-cycle, RISC-based, 8051 microprocessor with an enhanced MULT/ACCU unit that can be used to perform complex mathematical operations.

On-chip analog peripherals of VMX51C1020 such as: an A/D converter, PWM outputs (that can be used as D/A converters), a voltage reference, a programmable current source, an uncommitted operational amplifier, digital potentiometers and an analog switch makes the VMX51C1020 ideal for analog data acquisition applications. The inclusion of a full set of digital interfaces such as an enhanced fully configurable SPI, an I2C interface, UARTs and a J1708/RS-485/RS-422 compatible differential transceiver, enables total system integration.
