VM6101

Features: 4-channel Y+RGB photosensor, with integrated infrared filter Wide dynamic range light to frequency converters 2-wire serial interface, I²C and SMBus compatible PWM output for direct LCD backlight control Comparator logic with two programmable thresholds and hysteresis function Powe...

product image

VM6101 Picture
See larger image
SeekIC No. : 004542236 Detail

VM6101: Features: 4-channel Y+RGB photosensor, with integrated infrared filter Wide dynamic range light to frequency converters 2-wire serial interface, I²C and SMBus compatible PWM output for direct ...

VM6101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VM6101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

4-channel Y+RGB photosensor, with integrated infrared filter
Wide dynamic range light to frequency converters
2-wire serial interface, I²C and SMBus compatible
PWM output for direct LCD backlight control
Comparator logic with two programmable thresholds and hysteresis function
Power down input
3.0 V to 3.6 V supply range
Built-in clock generator, precision voltage and current references
Low profile Pb-free package (RoHS compliant)


Application

General purpose color measurement
Automatic backlighting control
Panel lighting
White goods

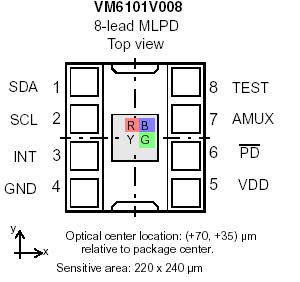

Pinout

Connection Diagram


Specifications


Parameter
MAX
MIN
 UNIT Symbol
Supply voltage
3.7
-0.5
V
VDD
DC input voltage, all I/O pins
VDD + 0.5
-0.5
V
VIN
Storage temperature
85
-40
°C
TSTG
Solder reflow peak temperature, JEDEC J STD-020
245
j
°C
TJ
Human body model ESD rating, all pins, JESD22-A114-B

2


kV
ESDHBM
Machine model ESD rating, all pins, JESD22-A115-B

200


V
ESDMM
Charged device model ESD rating, all pins, JESD22-C101-C

500


V
ESDCDM



Description

The VM6101 is a high dynamic range 4-channel CMOS photosensor suitable for ambient light sensing as well as color light sensing. Light intensity is converted linearly to a variable frequency signal. The signal period is readable through the two-wire serial interface.

A direct PWM output is provided for power saving LCD backlighting applications, where backlighting intensity adapts to the ambient light level. Alternatively, this output can be used as an ambient light level detector output, with two user programmable thresholds. A power down input puts the VM6101 in ultra low power mode.

The VM6101 is housed in an compact 8-lead surface mount clear plastic package, compliant to RoHS directive.
