VLA106-15151

Type: Isolated
Number of Outputs: 1
Voltage - Output 2: -
Voltage - Output 3: -
Power (Watts) - Manufacture Series: 1W
Features: -
Voltage - Output 1: 15V
Efficiency: 75%
Current - Output (Max): 100mA
Mounting Type: Through Hole
Packaging: Bulk
Voltage - Input (Max): 18V
Series: -
Voltage - Input (Min): 12V
Manufacturer: Powerex Inc
Voltage - Isolation: 2.5kV (2500V)
Package / Case: 11-SIP Module (7 Leads)
Size / Dimension: 1.30" L x 0.71" W x 0.95" H (33.0mm x 18.0mm x 24.1mm)
Operating Temperature: -10°C ~ 70°C


Features:

•Input voltage range: 12 to 18V DC
•Output: +15V, 100mA (output power : 1.5W)
•Thin-profile and lightweight design
•Isolation between input and output : 2500Vrms, 1min
•Built-in over-current protection circuit




Application

On-board power supplies, such as industrial equipment and control equipment.

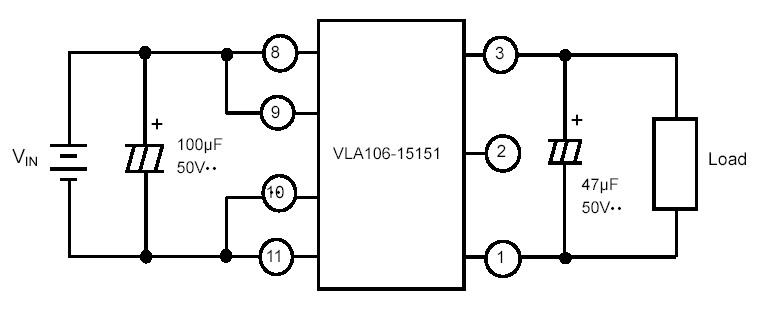

Pinout






Specifications

Symbol	Parameter	Conditions	Ratings	Unit
VIN	Input voltage	Between pins 8,9 and 10,11	18	V
IO	Output current	Between pins 3 and 1	100	mA
Topr	Operating temperature	No condensation	-10 ~ +70
Tstg	Storage temperature	No condensation	-20 ~ +85
Viso	Input-output isolation voltage	AC , 1min	2500	Vrms

Description

The VLA106-15151 is a DC-DC converter. Its output power is 1.5W and the input is isolated from the output. The over-current protection circuit is built-in and VLA106-15151 is the best for on-board power supplies, such as industrial equipment and control equipment.

Parameters:

Technical/Catalog Information	VLA106-15151
Vendor	Powerex Inc
Category	Power Supplies
Voltage - Input	12 ~ 18V
Output	15V
Power (Watts)	1.5W
Number of Outputs	1
1st Output	15 VDC @ 100mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	Bulk
Package / Case	11-SIP Module (7 Leads)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VLA106 15151 VLA10615151
