VHB75-D12-S24, US $ 46.45-46.45, VHB75-D12-S24 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003714105 Detail

VHB75-D12-S24: CONVERTER DC/DC 24V OUT 75W

VHB75-D12-S24 Data Sheet

US $ 46.45~46.45 / Piece | Get Latest Price

Part Number:: VHB75-D12-S24
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~100

Unit Price
$46.45

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/8/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

VHB75 evaluate
Features: ·37.5W-75W isolated output·Efficiency to 85%·300KHz switching frequency·2:1 input range·...
VHB75-D12-S12 evaluate
US $35.36 - 41.96 / Piece

CONVERTER DC/DC 12V OUT 75W

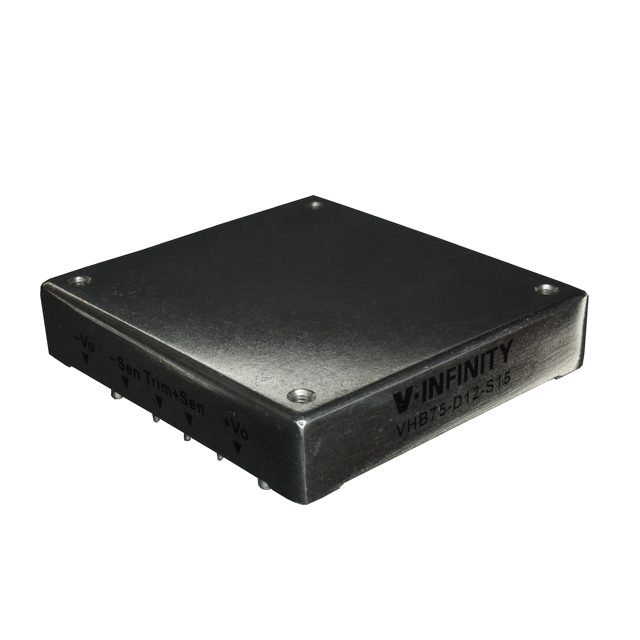

VHB75-D12-S15 evaluate
US $35.36 - 41.96 / Piece

CONVERTER DC/DC 9-18V INPUT 75W

Product Details

Quick Details

Series:	V-Infinity VHB75	Manufacturer:	CUI Inc
Type:	Isolated	Number of Outputs:	1
Package / Case :	BGA-48	Voltage - Input (Min):	9V
Voltage - Input (Max):	18V	Voltage - Output 1:	24V
Voltage - Output 2:	-	Voltage - Output 3:	-
Current - Output (Max):	3.13A	Power (Watts) - Manufacture Series:	75W
Voltage - Isolation:	1.5kV (1500V)	Features:	-
Mounting Type:	Through Hole	Package / Case:	9-DIP Module
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)	Packaging:	Bulk
Operating Temperature:	-40°C ~ 100°C

Description

Manufacturer: CUI Inc
Type: Isolated
Number of Outputs: 1
Voltage - Output 2: -
Voltage - Output 3: -
Features: -
Mounting Type: Through Hole
Efficiency: 84%
Voltage - Output 1: 24V
Packaging: Bulk
Voltage - Input (Max): 18V
Voltage - Input (Min): 9V
Voltage - Isolation: 1.5kV (1500V)
Series: V-Infinity VHB75
Power (Watts) - Manufacture Series: 75W
Package / Case: 9-DIP Module
Size / Dimension: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Operating Temperature: -40°C ~ 100°C
Current - Output (Max): 3.13A

Parameters:

Technical/Catalog Information	VHB75-D12-S24
Vendor	CUI Inc
Category	Power Supplies
Voltage - Input	9 ~ 18VDC
Output	24V
Power (Watts)	75W
Number of Outputs	1
1st Output	24 VDC @ 3.13A
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	-
Package / Case	9-DIP
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VHB75 D12 S24 VHB75D12S24 102 1258 ND 1021258ND 102-1258
