VG36128161BT

Features: • Single 3.3V (±0.3V ) power supply• High speed clock cycle time -7H: 133MHz<2-2-2>, -7L: 133MHz<3-3-3>, -8H: 100MHz<2-2-2>• Fully synchronous operation referenced to clock rising edge• Possible to assert random column access in every cycle•...

product image

VG36128161BT Picture
See larger image
SeekIC No. : 004541337 Detail

VG36128161BT: Features: • Single 3.3V (±0.3V ) power supply• High speed clock cycle time -7H: 133MHz<2-2-2>, -7L: 133MHz<3-3-3>, -8H: 100MHz<2-2-2>• Fully synchronous operation...

VG36128161BT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VG36128161BT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.3V (±0.3V  ) power supply
• High speed clock cycle time -7H: 133MHz<2-2-2>, -7L: 133MHz<3-3-3>, -8H: 100MHz<2-2-2>
• Fully synchronous operation referenced to clock rising edge
• Possible to assert random column access in every cycle
• Quad internal banks controlled by BA0 & BA1 (Bank Select)
• Byte control by LDQM and UDQM for VG36128161DT
• Programmable Wrap sequence (Sequential / Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable /CAS latency (2 and 3)
• Automatic precharge and controlled precharge
• CBR (Auto) refresh and self refresh
• X4, X8, X16 organization
• LVTTL compatible inputs and outputs
• 4,096 refresh cycles / 64ms

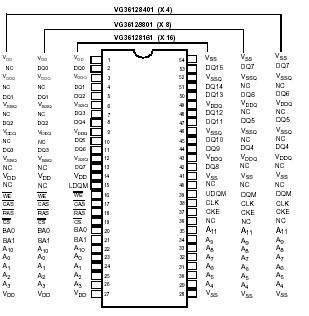

Pinout

Connection Diagram


Specifications

Parameter

Symbol

Conditions

Value

Unit

Supply Voltage

VDD

with respect to VSS

-0.5 to 4.6

V

Supply Voltage for Output

VDDQ

with respect to VSSQ

-0.5 to 4.6

V

Input Voltage

VI

with respect to VSS

-0.5 to 4.6

V

Output Voltage

VO

with respect to VSSQ

-0.5 to 4.6

V

Short circuit output current

IO

50

mA

Power dissipation

PD

Ta = 25 °C

1

W

Operating temperature

TOPT

0 to 70

Storage temperature

TSTG

-65 to 150






Description

The VG36128401B, VG36128801B and VG3664128161B are high-speed 134,217,728-bit synchronous dynamic random-access memories, organized as 8,388,608 x 4 x 4, 4,194,304 x 8 x 4 and 2,097,152 x16 x 4 (word x bit x bank), respectively.

The  VG36128401B, VG36128801B and VG3664128161B  synchronous DRAMs achieved high-speed data transfer using the pipeline architecture. All input and outputs are synchronized with the positive edge of the clock.The synchronous DRAMs are compatible with Low Voltage TTL (LVTTL).These products are packaged in 54-pin TSOPII.
