VDP313xY

Features: Video Decoding and Processing four CVBS, one S-VHS input, one YCRCB component input integrated high-quality A/D converters and associated clamp and AGC circuits adaptive 2H comb filter Y/C separator multistandard color decoder PAL/NTSC/SECAM including all substandards multistandard sync ...

product image

VDP313xY Picture
See larger image
SeekIC No. : 004540985 Detail

VDP313xY: Features: Video Decoding and Processing four CVBS, one S-VHS input, one YCRCB component input integrated high-quality A/D converters and associated clamp and AGC circuits adaptive 2H comb filter Y/C...

VDP313xY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VDP313xY
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Video Decoding and Processing
four CVBS, one S-VHS input, one YCRCB component input
integrated high-quality A/D converters and associated clamp and AGC circuits
adaptive 2H comb filter Y/C separator
multistandard color decoder PAL/NTSC/SECAM including all substandards
multistandard sync decoder
automatic standard recognition
black-line detector
linear horizontal scaling (0.25...4), as well as nonlinear horizontal scaling "Panoramavision"
black-level expander
dynamic peaking
soft limiter (gamma correction)
color transient improvement RGB Processing and Deflection
programmable RGB matrix
two analog RGB / Fastblank inputs
half-contrast switch
picture frame generator
scan velocity modulation output
high-performance H/V deflection
separate ADC for tube measurements
EHT compensation
angle and bow correction
one 20.25 MHz crystal, few external components
I2C-Bus Interface
64-pin PSDIP package


Pinout

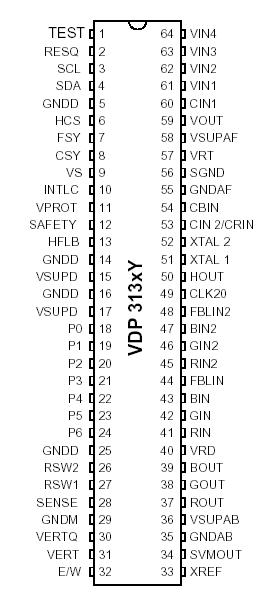

Connection Diagram


Specifications

Symbol
Parameter
Pin Name
Min.
Max.
Unit
TJ
Junction Temperature
0
125
TS
Storage Temperature
-40
125
PTOT
Total Power Dissipation
-
1400
mW
VSUPx
Supply Voltage
VSUPx
-0.3
6
V
VI
Input Voltage, all Inputs
-0.3
VSUPx+0.31)
V
VO
Output Voltage, all Outputs
-0.3
VSUPx+0.31)
V
VIO
Input/Output Voltage, all Open
Drain Outputs
-0.3
6
V
VES
Electrostatic Handling, HBM 2)
−2000
+2000
V
1) Refer to Pin Circuits (chapter 3.5. on page 57)
2) Human Body Model (HBM): R=1.5 kΩ, C=100 pF
