Features: •2.5V for VDDQ power supply•SSTL_2 interface•MRS Cycle with address key programs-CAS Latency (2, 2.5)-Burst Length (2,4 &8)-Burst Type (sequential & Interleave)•4 banks operation•Differential clock input (CK, /CK) operation•Double data rate int...
VDD7616A4A: Features: •2.5V for VDDQ power supply•SSTL_2 interface•MRS Cycle with address key programs-CAS Latency (2, 2.5)-Burst Length (2,4 &8)-Burst Type (sequential & Interleave)...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Symbol |
Value |
Unit |
Voltage on any pin relative to Vss |
VIN, Vout |
-0.5 ~ 3.6 |
V |
Voltage on VDD supply relative to Vss |
VDD, VDDQ |
-1.0 ~ 3.6 |
V |
Storage temperature |
TSTG |
-55 ~ +150 |
|
Power dissipation |
PD |
1.5 |
W |
Short circuit current |
IOUT |
50 |
mA |

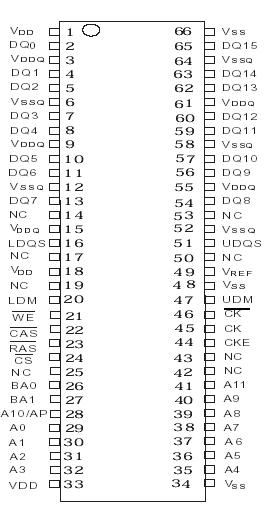

The VDD7616A4A are four-bank Double Data Rate(DDR) Synchronous DRAMs organized as 2,097,152 words x 16 bits x 4 banks.
Synchronous design of VDD7616A4A allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle.Data outputs occur at both rising edges of CK and /CK.Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth high performance memory system applications.
