VCA8617

Features: ` 3V OPERATION` LOW INPUT NOISE: 1.0nV/Hz at fIN = 5MHz` EXTREMELY LOW POWER OPERATION: 100mW/CHANNEL` INTEGRATED LOW-PASS, 2-POLE FILTER 15MHz BANDWIDTH`INTEGRATED INPUT CLAMP DIODES` DIFFERENTIAL OUTPUT` INTEGRATED INPUT LNA` READABLE CONTROL REGISTERS` INTEGRATED CONTINUOUS WAVE (CW) ...

product image

VCA8617 Picture
See larger image
SeekIC No. : 004540772 Detail

VCA8617: Features: ` 3V OPERATION` LOW INPUT NOISE: 1.0nV/Hz at fIN = 5MHz` EXTREMELY LOW POWER OPERATION: 100mW/CHANNEL` INTEGRATED LOW-PASS, 2-POLE FILTER 15MHz BANDWIDTH`INTEGRATED INPUT CLAMP DIODES` DIF...

VCA8617 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VCA8617
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 3V OPERATION
` LOW INPUT NOISE: 1.0nV/Hz at fIN = 5MHz
` EXTREMELY LOW POWER OPERATION: 100mW/CHANNEL
` INTEGRATED LOW-PASS, 2-POLE FILTER 15MHz BANDWIDTH
` INTEGRATED INPUT CLAMP DIODES
` DIFFERENTIAL OUTPUT
` INTEGRATED INPUT LNA
` READABLE CONTROL REGISTERS
` INTEGRATED CONTINUOUS WAVE (CW) PROCESSOR


Pinout

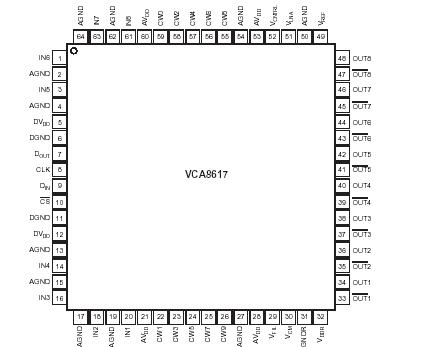

Connection Diagram


Specifications

AVDD V . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . .+3.6
Analog Input . . . . . . . . . . . . . . . . . . .  . . . . . . .−0.3V to +AVDD + 0.3V
Logic Input  . . . . . . . . . . . . . . . . . . . . . . .  . . . .−0.3V to +AVDD + 0.3V
Case Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .+100°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . +150°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . +150°C
Thermal Resistance, Junction-to-Ambient (JA)  . . . . . . .  . .66.6°C/W
Thermal Resistance, Junction-to-Case(JC) . . . . . . . . . . .  . .4.3°C/W


Description

The VCA8617 is an 8-channel variable gain amplifier ideally suited to portable ultrasound applications. Excellent dynamic performance enables use in low-power, high-performance portable applications. Each channel consists of a 20dB gain Low-Noise pre-Amplifier (LNA) and a Variable Gain Amplifier (VGA). The differential outputs of the LNA can be switched through the 8x10 cross-point switch, which is programmable through the serial interface input port.

The output of the VCA8617  LNA is fed directly into the VGA stage. The VGA consists of two parts, a Voltage-Controlled Attenuator (VCA) and a Programmable Gain Amplifier (PGA). The gain and gain range of the PGA can be digitally configured separately. The gain of the PGA can vary between four discrete settings of 25dB, 30dB, 35dB, and 40dB. The VCA has four programmable maximum attenuation settings: 29dB, 33dB, 36.5dB, and 40dB. Also, the VCA can be continuously varied by a control voltage from 0dB to a maximum of 29dB, 33dB, 36.5dB, and 40dB.

The output of the VCA8617 PGA feeds directly into an integrated two-pole, low-pass filter.
