VB325SP

Motor / Motion / Ignition Controllers & Drivers High Volt Ignition

product image

VB325SP Picture
SeekIC No. : 00533904 Detail

VB325SP: Motor / Motion / Ignition Controllers & Drivers High Volt Ignition

floor Price/Ceiling Price

US $ 1.96~2.33 / Piece | Get Latest Price
Part Number:
VB325SP
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~645
  • 645~1000
  • 1000~2000
  • Unit Price
  • $2.33
  • $2.03
  • $1.96
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Electronic Ignition Drivers Mounting Style : SMD/SMT
Package / Case : SO-10 Packaging : Tube

Description

Type :
Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Product : Electronic Ignition Drivers
Package / Case : SO-10


Features:

· PRIMARY COIL VOLTAGE INTERNALLY SET
· COIL CURRENT LIMIT INTERNALLY SET
· LOGIC LEVEL COMPATIBLE INPUT
· DRIVING CURRENT QUASI PROPORTIONAL
    TO COLLECTOR CURRENT
· SINGLE FLAG-ON COIL CURRENT
· LOW VOLTAGE CLAMP THERMAL
    SHUTDOWN



Pinout

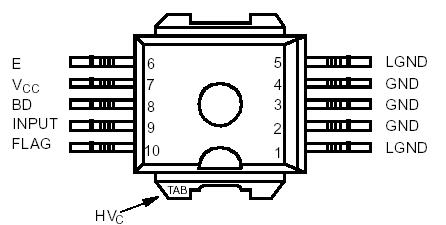

  Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
HVc
Collector voltage (Internally limited)
-0.3 to Vclamp
V
IC
Collector current (Internally limited)
10
A
IC(gnd)
DC current on Emitter Power
± 10.5
A
VCC
Driving stage supply voltage
-0.3 to 7
V
Is
Driving circuitry supply current
± 200
mA
Is(gnd)
DC current on Ground pin
± 1
A
VIN
Input voltage
-0.3 to VCC + 0.3
V
IIN
Maximum Input Current
100
mA
fIN
Logic Input Frequency in Operative Mode
DC to 150
Hz
VOUT(flag)
Output Voltage Primary Threshold Current Level
-0.3 to VCC + 0.3
V
IOUT(flag)
Flag Output Current
100
mA
Pmax
Power Dissipation (Tc=25°C)
125
W
Es/b
Self Clamped Energy during Output Power Clamping (See figure 2)
275
mJ
VESD
ESD voltage (HVc pin)
± 4
KV
VESD
ESD voltage (Enable pin)
+ 1.5 ; -2
KV
VESD
ESD voltage (Other pins)
± 2
KV
IBD
Input Darlington Base Current
150
mA
VBD
Input Darlington Base Voltage
Internally limited
V
Tj
Operating Junction Temperature
-40 to 150
°C
Tstg
Storage temperature Range
-55 to 150
°C
VE
Maximum Enable Voltage
-0.3 to 5.5
V
IE
Maximum Enable Current
± 150
A



Description

The VB325SP is a high voltage power integrated circuit made using the STMicroelectronics VIPower™ M1-3 technology, with vertical current flow power darlington and logic level compatible driving circuit. The enable pin allows to externally block the switch when the input is on. Built-in protection circuit for coil current limiting and collector voltage clamping allows the VB325SP device to be used as smart, high voltage, high current interface in advanced electronic ignition system. If the input signal from the micro happens to remain high, the device protects itself against over-heating by forcing collector current to smooth decrease (low voltage clamp feature) and no undesidered spark occurs (see figure 4).


Parameters:

Technical/Catalog InformationVB325SP
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
ApplicationsAutomotive
Number of Outputs1
Voltage - Supply5.3 V ~ 24 V
Voltage - Load-
Current - Output-
Operating Temperature-40°C ~ 125°C
Package / CasePowerSO-10 Exposed Bottom Pad
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VB325SP
VB325SP
