Product Details

Description



Features:

PRIMARY COILVOLTAGE INTERNALLY SET
COIL CURRENT LIMIT INTERNALLY SET
LOGIC LEVEL COMPATIBLE INPUT
BATTERY OPERATION
SINGLE FLAG-ON COIL CURRENT
TEMPERATURE COMPENSATED HIGH VOLTAGE CLAMP

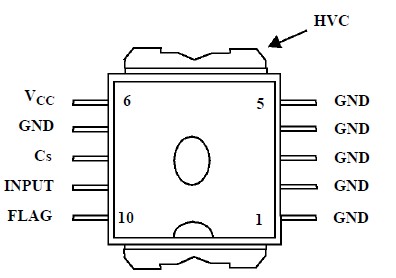

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
HVC Collector Voltage (Internally Limited) -0.3V to VCLAMP V
IC Collector Current (Internally Limited) 10 A
VCC Driving Stage Supply Voltage -0.2 to 40 V
ICC Driving Circuitry Supply Current 400 mA
IS Logic Circuitry Supply Ccurrent 100 mA
VIN Input Voltage -0.3 to 6 V
PTOT Power Dissipation TBD W
VESD ESD Voltage (HVC Pin) -4 to 4 KV
VESD ESD Voltage (Other Pin) -2 to 2 KV
Tj Operating Junction Temperature -40 to 150
TSTG Storage Temperature Range -55 to 150



Description

The VB125SP is a high voltage power integrated circuit made using SGS-THOMSON Microelectronics Vertical Intelligent Power Technology, with vertical current flow power darlington and logic level compatible driving circuit.

The VB125SP can be directly biased by using the 12V battery voltage, thus avoiding to use a low voltage regulator. It has built-in protection circuits for coil current limiting and collector voltage clamping. It is suitable as smart, high voltage, high current interface in advanced electronic ignition system.
