Product Details

Description

Features:

• Non-Isolated
• Wide Trim Range
• Fixed Frequency (275KHz)
• Converter Can Sink and Source
• High Efficiency Current
• High Power Density
• OCP/SCP
• Power Good Output Signal (open collector)
• Under-Voltage Lockout (UVLO)

Pinout

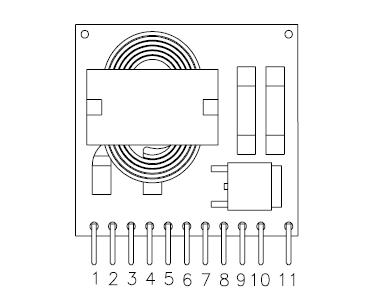

Connection Diagram

Specifications

Parameter	Min	Typ	Max	Notes
Input Voltage (continuous)	-0.3V	-	13.8V
Output Enable Terminal Voltage	-0.3V	-	13.8V
Ambient Temperature	0°C	-	80°C
Storage Temperature	-40°C	-	125°C

Description

The Bel x7PF-20A1A0 is a new high density open frame non-isolated converter series for space sensitive applications. Each model has a wide input range (10.2V-13.8V) and offers a wide range of output voltage (0.9V - 5.0V) with a 20A load. An external resistor adjusts the output voltage from its pre-set value of 0.9V to any value up to the 5.0V maximum. Typical efficiency is 92% at Vo=5V, Vin=12V at full load. Typical features include remote on/off, under-voltage lockout, over-current protection and short circuit protection.
