Product Details

Description

Features:

• Non-Isolated
• Under Voltage Lockout (UVLO)
• High Efficiency
• OCP/SCP
• High Power Density
• Over Temperature Protection
• Excellent Thermal Performance
• Wide Trim Range
• Low Cost
• Power Good Output Signal
• Remote On/Off
• Can Sink & Source Current
• Remote Sense

Pinout

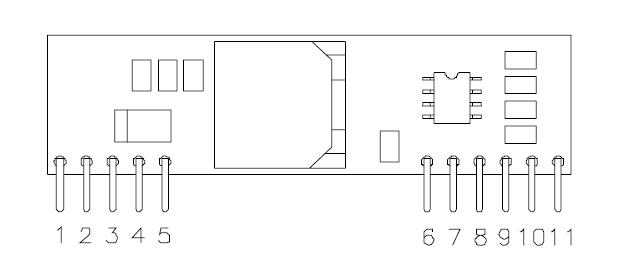

Connection Diagram

Specifications

Parameter	Min	Typ	Max	Notes
Input Voltage (continuous)	-0.3V	-	15V
Output Enable Terminal Voltage	-0.3V	-	15V
Ambient Temperature	-40°C	-	85°C
Storage Temperature	-40°C	-	125°C

Note: All specifications are typical at 25°C unless otherwise stated.

Description

The Bel V7PB-06F1A0 modules are a series of non-isolated high density open frame DC/DC converters that can deliver up to 6A of output current with full load efficiency of 94% at 3.3V output. These modules provide precisely regulated voltage programmable via external resistor from 0.75V to 3.63V over a wide range of input\ voltage (Vin=3.0V-5.5V). Standard features include remote On/Off, programmable output voltage, over current protection, over thermal shutdown and short circuit protection.
