Product Details

Description



Features:

 Very simple 1-bit interface (see Fig. 1)
 V6123 mux mode 2 with 2 rows and 58 columns
 V6123 mux mode 4 with 4 rows and 56 columns
 V6123 mux mode 8 with 8 rows and 52 columns
 Very simple 1-bit interface, reduced to its simplest form
 Frame frequency on chip by internal RC oscillator
 Voltage bias and mux signal generation on chip
 1 display RAM addressable as 8 x 60 bit words
 Column driver only mode to have 60 column outputs
 No busy states
 No external components needed
 Blank function for LCD blanking
 Bit mapped
 Wide VDD voltage supply range, 2 to 6 V
 Wide VLCD voltage supply range, 2 to 8.5 V
 -40 to + 85 °C temperature range


Application

 Automotive displays
 Telephones
 Pagers
 Portable, battery operated products
 Large displays (public information panels, etc.)
 Balances and scales
 Utility meters


Pinout

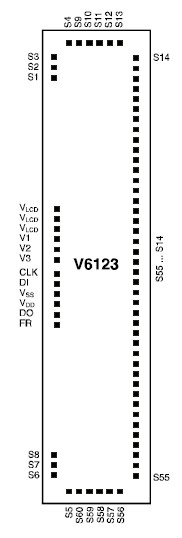

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Supply voltage range
VDD
-0.3 V to 9 V
LCD supply voltage range
VLCD
-0.3 V to 10 V
Voltage at DI, DO, CLK, FR
VLOGIC
-0.3 V to VDD +0.3 V
Voltage at V1 to V3, S1 to S60
VDISP
-0.3 V to VLCD +0.3 V
Storage temperature range
TSTO
-65 to +150 °C
PElectrostatic discharge max
to MIL-STD-883C method 3015
VSmax
1000 V
Maximum soldering conditions
TSmax
250 °C x 10 s



Description

The V6123 is a low mul ti plex LCD driver. The 2, 4 and 8 way mul ti plex is dig itally pro grammable by the com mand byte. The dis play re fresh is han dled on chip by an in ter nal RC os cillator via 1 selectable 8 x 60 RAM which holds the LCD con tent driven by the driver. LCD pix els (or segments) are ad dressed on a one to one ba sis with the 8 x 60 bit RAM (a set bit cor responds to an ac ti vated LCD pixel).

The V6123 has a very low dy namic cur rent con sump tion, typically 175 A at VDD = 5 V, VLCD = 7 V, mak ing it par tic u - larly at trac tive for por ta ble and bat tery pow ered prod ucts. The wide op er at ing range on sup ply volt ages and tem - per a ture of fers much ap pli ca tion flex ibility. The LCD bias gen er a tion and frame fre quency are gen erated on chip. The clock sig nal can be used to shift and to latch the data into the RAM.
