Product Details

Description



Features:

• Extended clock frequency range of 12 to 90 MHz
• Pin and function compatible with the National DS90C385, TI SN65LVDS93 and THine THC63LVDM83,
   but with extended clock frequency and operating temperature range
• Convert 28 bits of 3.3 V CMOS/TTL into 4 LVDS streams
• Up to 2.52 Gbps throughput or 315 Megabytes/sec bandwidth
• Spread spectrum compatible
• Supports SD, HD and VGA graphics applications
• LVDS voltage swing of 350 mV for low EMI
• On-chip PLL requires no external components
• Single 3.3 V low-power CMOS design
• Operating temperature of 0 to +70°C
• Programmable rising or falling edge strobe
• Power-down control function
• Compatible with TIA/EIA-644 LVDS standards
• Packaged in a 56-pin TSSOP (Pb free available)

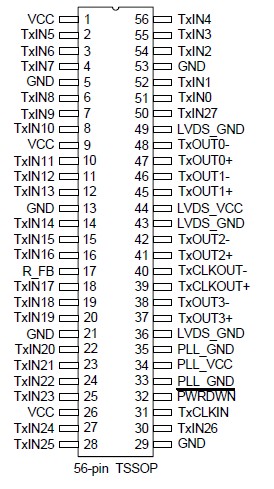

Pinout

Connection Diagram


Specifications

Item

Rating

Supply Voltage, VDD -0.3 V to +4 V
All Inputs and Outputs -0.3 V to VCC+0.3 V
Electrostatic Discharge (EIAJ, 0, 200 pF) > 500 V
Ambient Operating Temperature 0 to +70°C
Storage Temperature -65 to +150°C
Junction Temperature 150°C
Maximum Soldering Temperature 260°C



Description

The V385A transmitter converts 28 bits of 3.3 V CMOS/TTL into 4 Low Voltage Differential Signaling (LVDS) data streams while the transmit clock input is transmitted in parallel with the data streams over a fifth LVDS link.

Compared to the V385, the V385A provides an extended clock frequency range of 12-90 MHz, rather than 20-85 MHz. Other performance improvements have been incorporated as well. The V385A can be programmed for rising edge or falling edge clocks through pin R_FB.
