V370PDC

Features: • Fully compliant with PCI 2.2 specification target interface• Multiplexed or Non-multiplexed 8-, 16-, or 32-bit generic peripheral bus interface• Support up to 1 Gbyte of SDRAM• Support up to 2 single banks or 1 dual bank industrial standard 168-pin PC SDRAM DIMM...

product image

V370PDC Picture
See larger image
SeekIC No. : 004539773 Detail

V370PDC: Features: • Fully compliant with PCI 2.2 specification target interface• Multiplexed or Non-multiplexed 8-, 16-, or 32-bit generic peripheral bus interface• Support up to 1 Gbyte o...

V370PDC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V370PDC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully compliant with PCI 2.2 specification target interface
• Multiplexed or Non-multiplexed 8-, 16-, or 32-bit generic peripheral bus interface
• Support up to 1 Gbyte of SDRAM
• Support up to 2 single banks or 1 dual bank industrial standard 168-pin PC SDRAM DIMM
• Support up to 1Kbyte of burst access from PCI
• Up to 5 programmable chip select for peripheral strobe generation
• Large On-Chip FIFOs using V3's unique DYNAMIC BANDWIDTH ALLOCATION™ architecture
• Buffered PCI clock output
• Hot Swap Ready (PICMG™ Hot Swap Specification)
• Implementation of PCI Bus Power Management Interface Specification Version 1.0
• Initialization through PCI or serial EEPROM
• Programmable PCI and local interrupt management
• Two 32-bit General Purpose Timers
• Up to 66 MHz local bus clock with asynchronous PCI clock up to 33MHz
• 3.3V operation with 5V tolerant inputs
• Industrial Temperature Range (-40C to +85C)
• Low cost 160-pin PQFP package


Pinout

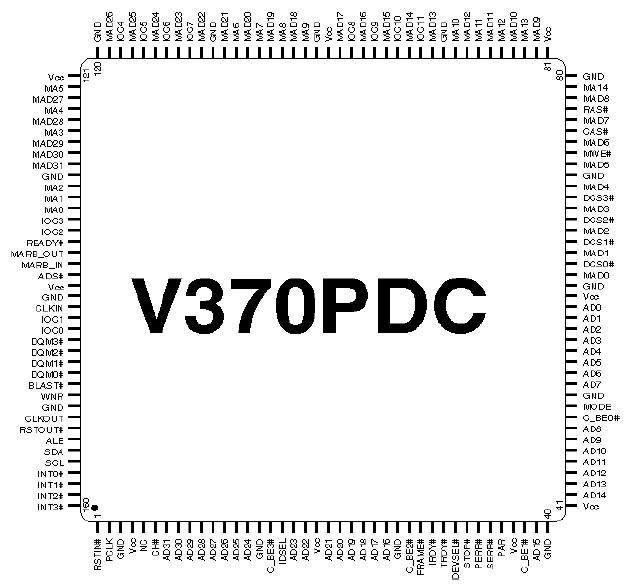

Connection Diagram


Specifications

Symbol

Parameter

Value

Units

VCC

Supply voltage

-0.3 to +3.6

V

VIN

DC input voltage

-0.3 to 6.0

V

TSTG

Storage temperature range

-55 to +125

°C
