Features: 256Kx8-bit OrganizationAddress Access Time: 55, 90 nsSingle 5V± 10% Power SupplySector Erase Mode Operation16KB Boot Block (lockable)512 bytes per Sector, 512 Sectors Sector-Erase Cycle Time: 10ms (Max) Byte-Write Cycle Time: 20s (Max)Minimum 10,000 Erase-Program CyclesLow power dissip...

See larger image

SeekIC No. : 004539715 Detail

V29C51002T: Features: 256Kx8-bit OrganizationAddress Access Time: 55, 90 nsSingle 5V± 10% Power SupplySector Erase Mode Operation16KB Boot Block (lockable)512 bytes per Sector, 512 Sectors Sector-Erase Cycle T...

V29C51002T Data Sheet

Get Latest Price

Part Number:: V29C51002T
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

256Kx8-bit Organization
Address Access Time: 55, 90 ns
Single 5V± 10% Power Supply
Sector Erase Mode Operation
16KB Boot Block (lockable)
512 bytes per Sector, 512 Sectors
   Sector-Erase Cycle Time: 10ms (Max)
   Byte-Write Cycle Time: 20s (Max)
Minimum 10,000 Erase-Program Cycles
Low power dissipation
   Active Read Current: 20mA (Typ)
   Active Program Current: 30mA (Typ)
   Standby Current: 100A (Max)
Hardware Data Protection
Low V_CC Program Inhibit Below 3.5V
Self-timed write/erase operations with end-of-cycle detection
   DATA Polling
   Toggle Bit
CMOS and TTL Interface
Available in two versions
   V29C51002T (Top Boot Block)
   V29C51002B (Bottom Boot Block)
Packages:
   32-pin Plastic DIP
   32-pin TSOP-I
   32-pin PLCC

Pinout

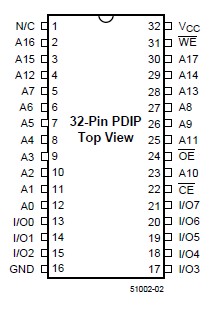

Connection Diagram

Specifications

Symbol	Parameter	Commercial	Unit
V_IN	Input Voltage (input or I/O pins)	-2 to +7	V
V_IN	Input Voltage (A₉ pin, OE)	-2 to +13	V
V_CC	Power Supply Voltage	-0.5 to +5.5	V
T_STG	Storage Temerpature (Plastic)	-65 to +125	°C
T_OPR	Operating Temperature	0 to +70	°C
I_OUT	Short Circuit Current⁽²⁾	200 (Max.)	mA

Description

The V29C51002T/V29C51002B is a high speed 262,144 x 8 bit CMOS flash memory. Writing or erasing the device is done with a single 5 Volt power supply. The device has separate chip enable CE, write enable WE, and output enable OE controls to eliminate bus contention.

The V29C51002T/V29C51002B offers a combination of: Boot Block with Sector Erase/Write Mode. The end of write/erase cycle is detected by DATA Polling of I/O₇ or by the Toggle Bit I/O₆.

The V29C51002T/V29C51002B features a sector erase operation which allows each sector to be erased and reprogrammed without affecting data stored in other sectors. The device also supports full chip erase.

Boot block architecture enables the device to boot from a protected sector located either at the top (V29C51002T) or the bottom (V29C51002B). All inputs and outputs are CMOS and TTL compatible.

The V29C51002T/V29C51002B is ideal for applications that require updatable code and data storage.
