V23833-G6005-A101

Features:

Standards
• Compatible with IEEE Std 802.3ae™-2002
• Compatible with Fibre Channel 10GFC Draft 3.5
• Compatible with XPAK MSA Rev. 2.3
Optical
• IEEE Ethernet: Serial 850 nm 10GBASE-SR
• T11 Fibre Channel: Serial 850 nm 1200-M5-SN-I; 1200-M5E-SN-I; 1200-M6-SN-I
• 10 Gigabit Fibre Channel: 10.51875 Gbit/s  (V23833-G2005-A101)
• 10 Gigabit Ethernet: 10.3125 Gbit/s (V23833-G6005-A1x1)
• Transmission distance
   up to 82 m1) (50 µm MMF)
   up to 300 m1) (on special MMF)
• Vertical Cavity Surface Emitting Laser at 850 nm  (VCSEL)
• LC connector, multimode fiber
• Full duplex transmission mode
• Eye safety class 1M (IEC 60825-1:A2)
•DOM
  Loss Of Signal from receiver
  Supply voltage monitor (+3.3 V, Adaptable Power Supply)
  Transmit power
  Module temperature
  Received power
  Transmit bias current monitor
Mechanical
• Mezzanine profile: 2.68" L x 1.42" W x 0.38" H (68.07 mm x 35.99 mm x 9.8 mm)
• Mezzanine module height for PCI card applications mid-board mounting
• Separated signal/chassis ground (a common signal/chassis ground module version is available upon request)
• Belly-to-belly applications
• De-latch mechanism with low extraction force (V23833-Gxxxx-Ax0x only)
• Built-in heat sink
Electrical
• Hot pluggable
• Power supply: +5.0 V, +3.3 V, Adaptable Power Supply (APS: +1.8 V)
• Total power consumption: 3.4 W typical
• XAUI electrical interface
  3.125 Gbit/s Ethernet (V23833-G60xx-xxxx)
  3.1875 Gbit/s Fibre Channel (V23833-G20xx-xxxx)
• Management and control via MDIO 2-wire bus
• 70-pin connector


Application

• 10 Gbit/s Ethernet and Fibre Channel transmission systems for Short Range (SR)
• Integration on PCI card
• Mid-board mounting
• Belly-to-belly for high density applications
• Enterprise and campus network applications
• Storage applications
• Backplane and switch applications
• Core and edge routers
• Aggregation point for lower date rate
• XPAK evaluation kit V23833-G9909-Z001 available upon request

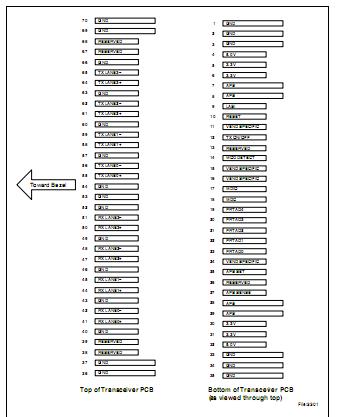

Pinout

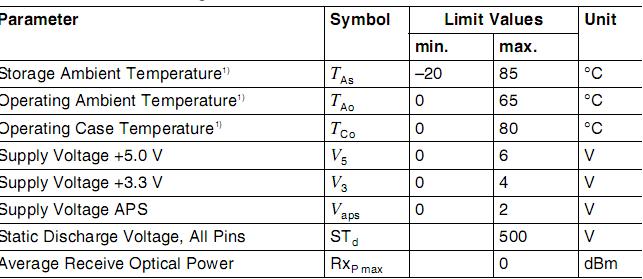

Specifications

Description

Optical Interface Standard Specifications of the V23833-G6005-A101
• IEEE Std 802.3ae™-2002 clause 52, 10GBASE-SR
• Fibre Channel 10GFC Draft 3.5, 1200-M5-SN-I
• Fibre Channel 10GFC Draft 3.5, 1200-M5E-SN-I
• Fibre Channel 10GFC Draft 3.5, 1200-M6-SN-I
• XPAK MSA 2.
3Electrical Interface Standard Specifications
• IEEE Std 802.3ae™-2002 clause 45 & 47
• XPAK MSA 2.3
