Standards
Compatible with IEEE 802.3ae™-2002
Compatible with Fibre Channel 10GFC Draft 3.5
Compatible with XFP MSA Rev. 3.1
Optical
IEEE Ethernet: Serial 850 nm 10GBASE-SR
T11 Fibre Channel: Serial 850 nm
1200-M5-SN-I; 1200-M5E-SN-I; 1200-M6-SN-I
Transmission distance
up to 82 m1) (50 µm MMF)
up to 300 m1) (on special MMF)
Vertical Cavity Surface Emitting Laser at 850 nm (VCSEL)
LC connector, multimode fiber
Full duplex transmission mode
Monitoring and Control
Laser safety shut off
Supply voltage 5 V / 3.3 V
Received power RSSI
Laser bias current Transmit power
Tx_DIS
Mod_NR
Mod_DeSel
Interrupt
Mod_ABS
P_Down/RST
Rx_Los
Mechanical
Color coded beige for 850 nm
Belly-to-belly applications
Latching mechanism with low insertion force
Electrical
Hot pluggable
Power supply 5 V / 3.3 V only
Total power consumption < 1.5 W max.
XFI electrical interface
Reference clock not required
Management and control via 2-wire interface

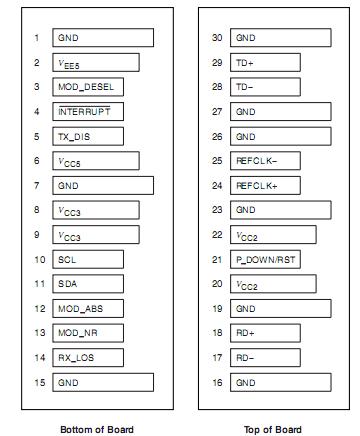

30 pin connector, 0.8 mm pitch
