Features: • Compliant with ATM, SONET OC-3, SDH STM-1
• Meets mezzanine standard height of 9.8 mm
• Compact integrated transceiver unit with
MQW laser diode transmitter
InGaAs PIN photodiode receiver
Duplex ST® receptacle
• Class 1 FDA and IEC laser safety compliant
• FDA Accession No. 9520890-20
• Single power supply (5 V or 3.3 V)
• Signal detect indicator
• PECL differential inputs and outputs
• Process plug included
• Input Signal Monitor
• Wave solderable and washable with process plug inserted
• Typical dynamic range of 36 dB
• Industry standard multisource 1x9 footprint
• For distances of up to 40 km on single mode fiberApplicationATM transceivers and matching circuits are high frequency components and shall be terminated as recommended in the application notes for proper EMI performance. Electromagnetic emission may be caused by these components.

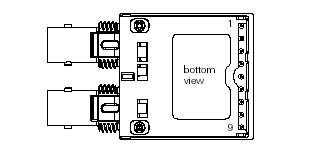

Pinout
Specifications
|
Parameter |
Symbol |
Limit Values |
Unit |
|
min. |
max. |
| Package Power Dissipation1) |
|
|
1.5 |
W |
Supply Voltage 5V
3.3 V |
VCCVEE |
|
7
5 |
V |
| Data Input Levels |
|
|
VCC + 0.5 |
| Differential Data Input Voltage |
|
|
2.5 |
| Operating Ambient Temperature |
|
0 |
70 |
|
| Storage Ambient Temperature |
|
-40 |
85 |
Soldering Conditions Temp/Time
(MIL-STD 883C, Method 2003) |
|
|
250/5.5 |
/S |
1) For VCC VEE (min., max.). 50% duty cycle. The supply current does not include the load drive current of the
receiver output.
Exceeding any one of these values may destroy the device immediately.
DescriptionThe Infineon single mode ATM transceiver complies with the ATM Forum's Network Compatible ATM for Local Network Applications document and ANSI's Broadband ISDN - Customer Installation Interfaces, Physical Media Dependent Specification, T1.646-1995, Bellcore-SONET OC-3/LR-1 and ITU-T G.957 STM-1/L.1.1.
ATM was developed to facilitate solutions in multimedia applications and real time transmission. The data rate is scalable, and the ATM protocol is the basis of the broadband public networks being standardized in the International Telecommunications Union (ITU), the former International Telegraph and Telephone Consultative Committee (CCITT). ATM can also be used in local private applications.
The Infineon single mode ATM long haul transceiver is a single unit comprised of a transmitter, a receiver, and an ST receptacle. This design frees the customer from many alignment and PC board layout concerns. The module is designed for low cost WAN applications. It can be used as the network end device interface in workstations, servers,
and storage devices, and in a broad range of network devices such as bridges, routers, intelligent hubs, and wide area ATM switches.
This ATM transceiver operates at 155.520 Mbit/s from a single power supply (+5 V or +3.3 V).The differential data inputs and outputs are PECL compatible.
V23826-C18-T364 Data Sheet
