V23815-K1306-M230

Features: • Power supply (3.3 V)• Low voltage differential signal electrical interface (LVDS)• 22 electrical data + 1 clock channels• Synchronous, DC-coupled optical link• 12 optical data channels• Electrical transmission data rate of 200-500 Mbit/s per channel,...

product image

V23815-K1306-M230 Picture
See larger image
SeekIC No. : 004539621 Detail

V23815-K1306-M230: Features: • Power supply (3.3 V)• Low voltage differential signal electrical interface (LVDS)• 22 electrical data + 1 clock channels• Synchronous, DC-coupled optical linkR...

V23815-K1306-M230 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V23815-K1306-M230
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply (3.3 V)
• Low voltage differential signal electrical interface (LVDS)
• 22 electrical data + 1 clock channels
• Synchronous, DC-coupled optical link
• 12 optical data channels
• Electrical transmission data rate of 200-500 Mbit/s per channel, total link data rate up to 11 Gbit/s
• Two clocking modes can be selected
• Transmission distance depends on data rate and fiber skew, up to 75 m at maximum data rate
• Transmitter: 840 nm VCSEL (Vertical Cavity Surface Emitting Laser) technology
• Receiver: 840 nm PIN diode array
• Fiber ribbon: 62.5 m graded index multimode fiber
• MT based optical port
• SMD technology
• Transmitter: Class 1 FDA and Class 3A IEC laser safety compliant


Application

Telecommunication
• Switching equipment
• Access network
Data Communication
• Interframe (rack-to-rack)
• Intraframe (board-to-board)
• On board (optical backplane)
• Interface to SCI and HIPPI 6400 standards


Pinout

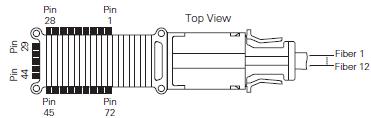

Connection Diagram


Specifications

Supply Voltage (VCCVEE) ................................ 0.3 V to 4.5 V
Data/Control Input Levels (VIN)(1) .......... 0.5 V to VCC+0.5 V
LVDS Input Differential Voltage (|VID|)(2) ......................... 2.0 V
Operating Case Temperature (TCASE)(3) ..... .. ... .. ...0 to 80
Storage Ambient Temperature (TSTG)................ 20 to 100
Operating Moisture ................................................ 20% to 85%
Storage Moisture   ................................................. 20% to 85%
Soldering Conditions Temp/Time (TSOLD, tSOLD)(4) .....260/10s
ESD Resistance (all pins to VEE human body model)(5) ....... 1 kV
Notes
1. At LVDS and LVCMOS inputs.
2. |VID|=|(input voltage of non-inverted input minus input voltage of inverted input)|.
3. Measured at case temperature reference point (see dimensional drawing).
4. Hot bar soldering.
5. To avoid electrostatic damage the handling precautions as for MOS devices must be taken into account.


Description

PAROLI of the V23815-K1306-M230 is a parallel optical link for high-speed data transmission.A complete PAROLI system consists of a transmitter
module, a 12-channel fiber optic cable, and a receiver module
