Features: • 48 V to 2 V V•I Chip Converter• 80 A (120 A for 1 ms)• High density 320 A/in3• Small footprint 75 A/in2• Low weight 0.5 oz (14 g)• Pick & Place / SMD• 125 operation• 1 s transient response• >3.5 million hours MTBF...
V048K020T080: Features: • 48 V to 2 V V•I Chip Converter• 80 A (120 A for 1 ms)• High density 320 A/in3• Small footprint 75 A/in2• Low weight 0.5 oz (14 g)• Pick &...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Values |
Unit |
Notes |
+In to -In |
-1.0 to 60.0 |
Vdc |
|
+In to -In |
100 |
Vdc |
For 100 ms |
PC to -In |
-0.3 to 7.0 |
Vdc |
|
TM to -In |
-0.3 to 7.0 |
Vdc |
|
VC to -In |
-0.3 to 19.0 |
Vdc |
|
+Out to -Out |
0.1 to 4.0 |
Vdc |
|
Isolation voltage |
2.250 |
Vdc |
Input to Ouput |
Operating junction temperature |
-40 to 125 |
See Note | |
Output current |
80 |
A |
Continuous |
Peak output current |
120 |
A |
For 1 ms |
Case temperature during reflow |
208 |
||
Storage temperature |
-40 to 150 |
||
Output power |
174 |
W |
Continuous |
Peak output power |
261 |
W |
For 1 ms |

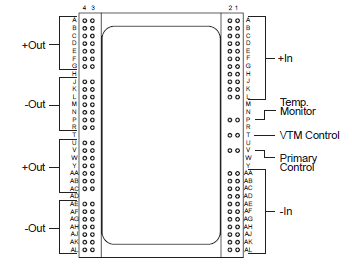

The V048K020T080 V•I Chip Voltage Transformation Module (VTM) breaks records for speed, density and efficiency to meet the demands of advanced DSP, FPGA, ASIC, processor cores and microprocessor applications at the point of load (POL) while providing isolation from input to output. It achieves a response time of less than 1 s and delivers up to 80 A in a volume of less than 0.25 in3 while providing low output voltages with unprecedented efficiency. It may be
paralleled to deliver hundreds of amps at an output voltage settable from 1.1 to 2.3 Vdc.
The VTM V048K020T080's nominal output voltage is 2 Vdc from a 48 Vdc input factorized bus, Vf, and is controllable from 1.1 to 2.3 Vdc at no load, and from 1.1 to 2.2 Vdc at full load, over a Vf input range of 26 to 55 Vdc. It can be operated either open- or closed-loop depending on the output regulation needs of the application. Operating open-loop, the output voltage tracks its Vf input voltage with a transformation ratio, K = 1/24, and an output resistance, ROUT = 1.3 milliohm, to enable applications requiring a programmable low output voltage at high current and high efficiency. Closing the loop back to an input Pre-Regulation Module (PRM) or DC-DC converter can compensate for ROUT.
The 2 V VTM of the V048K020T080 achieves break-through current density of 320 A/in3 in a V•I Chip package compatible with standard pick-and-place and surface mount assembly processes. The V•I Chip BGA package supports in-board mounting with a low profile of 0.16" (4 mm) over the board. A J-lead package option supports on-board surface mounting with a profile of only 0.25" (6 mm) over the board. The VTM's fast dynamic response and low noise eliminate the need for bulk capacitance at the load, substantially increasing the POL density while improving reliability and decreasing cost.
