Product Details

Description

Features:

·Output current (single output) 500mA MAX.
·High sustaining voltage output 50V MIN.
·Output clamp diodes
·Inputs compatible with various types of logic

Application

·Relay, hammer, lamp and display (LED) drivers

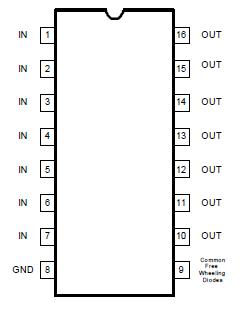

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	VALUE	UNIT
Input Voltage	V_IN	-0.5~30	V
Output Sustaining Voltage	V_CE _(SUS)	-0.5~50	V
Output Current	I_OUT	500	mA/ch
Clamp Diode Reverse Voltage	V_R	50	V
Clamp Diode Forward Current	I_F	500	mA
Power Dissipation	P_d	DIP: 1.47 SOP:0.54/0.625(Note)	W
Operating Temperature	T_opr	-40 to +85	°C
Storage Temperature	T_str	-55 to +150	°C

Note: On glass epoxy PCB (30x30x1.6mm Cu 50%)

Description

The UTC ULN2003 is high-voltage,high-current darlighton rivers comprised of seven NPN darlington pairs.
