UTC TL074

Features: ·Low power consumption·Wide common-mode (up to vcc+ ) and differential oltage range·Low input bias and offset current·Low noise en = 15nV / Ö Hz(typ)·Output short-circuit protection·High input impedance J-FET input stage·Low harmonic distortion:0.01%(typ)·Internal frequency compensa...

product image

UTC TL074 Picture
See larger image
SeekIC No. : 004539191 Detail

UTC TL074: Features: ·Low power consumption·Wide common-mode (up to vcc+ ) and differential oltage range·Low input bias and offset current·Low noise en = 15nV / Ö Hz(typ)·Output short-circuit protection·H...

UTC TL074 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UTC TL074
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low power consumption
·Wide common-mode (up to vcc+ ) and differential oltage range
·Low input bias and offset current
·Low noise en = 15nV / Ö Hz(typ)
·Output short-circuit protection
·High input impedance J-FET input stage
·Low harmonic distortion:0.01%(typ)
·Internal frequency compensation
·Latch up free operation
·High slewrate:13V/ms(typ)


Pinout

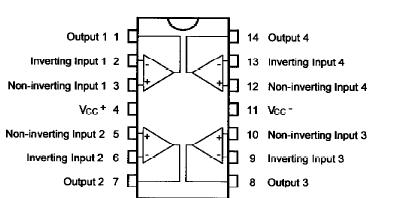

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNIT
Supply voltage(note 1)
Vcc
+-18
V
Input Voltage (note 2)
Vi
+-15
V
Differential Input Voltage (note 3)
Vid
+-30
V
Power dissipation
Ptot
680
mW
Output Short-Circuit Duration (Note 4)
Infinite
Operating Free Air Temperature
Toper
0 to 70
Storage Temperature
Tstg
5 to 150
NOTES: 1. All voltage values, except differential voltage, are with respect to the zero reference level (ground) of he supply voltages where the zero reference level is the midpoint between Vcc- and Vcc+.
2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, hichever is less.
3. Differential voltages are at the non-inverting input terminal with respect to the inverting input terminal.
4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be imited to ensure that the dissipation rating is not exceeded.


Description

The UTC TL074 is a high speed J-FET input quad perational amplifier. It incorporates well matched, igh voltage J-FET and bipolar transistors in a onolithic integrated circuit. The device features high lew rates, low input bias and offset current, and low ffset voltage temperature coefficient.
