UTC TL062

Features:

·Very low power consumption
·Wide common-mode (up to Vcc+ ) and differential voltage range
·Low input bias and offset current
·Output short-circuit protection
·High input impedance J-FET input stage
·Internal frequency compensation
·Latch up free operation
·High slew rate: 3.5V/ms(typ)
·Typical supply current: 200mA

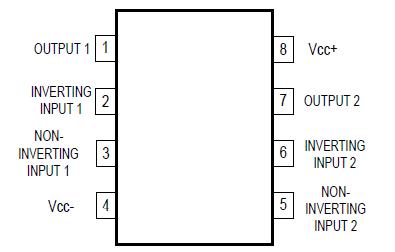

Pinout




Specifications

NOTES: 1. All voltage values, except differential voltage, are with respect to the zero reference level (ground) of the supply voltages where the zero reference level is the midpoint between Vcc- and Vcc+.
2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, whichever is less.
3. Differential voltages are at the non-inverting input terminal with respect to the inverting input terminal.
4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded.

Description

The UTC TL062 is a high speed J-FET input dual operational amplifier. It incorporates well matched, high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
