UTC MC3361BP

Features: ·Low power consumption (4.0mA typ. at Vcc=4.0V)·Excellent input sensitivity (-3dB limiting, 2.0mVrms typ.)·Minimum number of external components required.·Operating Voltage:2.5~7.0VApplication·Cordless phone (for home use)·FM dual conversion communications equipmentPinoutSpecifications ...

product image

UTC MC3361BP Picture
See larger image
SeekIC No. : 004539172 Detail

UTC MC3361BP: Features: ·Low power consumption (4.0mA typ. at Vcc=4.0V)·Excellent input sensitivity (-3dB limiting, 2.0mVrms typ.)·Minimum number of external components required.·Operating Voltage:2.5~7.0VApplica...

UTC MC3361BP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UTC MC3361BP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low power consumption (4.0mA typ. at Vcc=4.0V)
·Excellent input sensitivity (-3dB limiting, 2.0mVrms typ.)
·Minimum number of external components required.
·Operating Voltage:2.5~7.0V


Application

·Cordless phone (for home use)
·FM dual conversion communications equipment

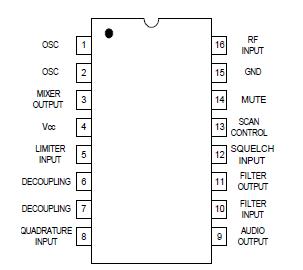

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNIT
Max. Supply Voltage
Vcc(max)
10
V
Supply Voltage Range
Vcc
2.5 to 7.0
V
Detector Input voltage
VI(DET)
1.0
Vp-p
RF Input Voltage (Vcc>=4.0V)
VI(RF)
1.0
Vrms
Mute Function
VMUTE
-0.5 ~ + 5.0
Vpeak
Operating Temperature
TOPR
-20 to +70
Storage Temperature
Tstg
-65 to +150

Note: Absolute maximum ratings are those values beyond which permanent damage to the device may occur. These are stress ratings only and functional operation of the device at or beyond them is not implied. Long exposure to these conditions may affect device reliability.




Description

The UTC MC3361BP is designed for use in FM dual conversion communication. It contains a complete narrow band FM demodulation system operable to less than 2.5V supply voltage. This low-power narrow-band FM IF system provides the second converter, second IF, demodulator. Filter Amp and squelch circuitry for communications and scanning receivers.
