Product Details

Description

Features:

·Single Supply Operation
·Operating Voltage (+-1.0V~+-3.5V)
·Low Saturation Output Voltage
·High Slew Rate (4V/ ms typ.)
·Package Outline
·Bipolar Technology

Pinout

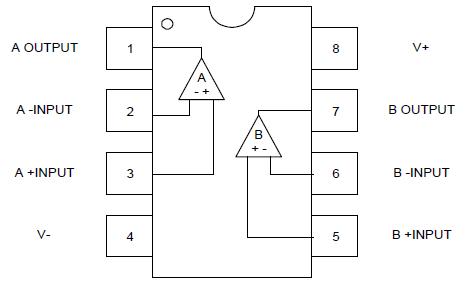

Connection Diagram

Specifications

PARAMETER	SYMBOL	VALUE	UNIT
Supply Voltage	V+/V-	+-3.5	V
Differential Input Voltage	V_ID	+-7	V
Power Dissipation	Pd	500 (DIP8) 250 (SOP8)	mW
Operating Temperature	Topr	-20~+75	°C
Storage Temperature	Tstr	-40~+125	°C

Description

The UTC M2100 is a low supply voltage and low aturation output voltage (+-2.0V p-p at supply voltage -2.5V) operational amplifier. It is applicable to handy ype CD, radio cassette CD, and portable DAT, that re digital audio apparatus which require the 5V single upply operation and high output voltage.
