Product Details

Description



Features:

·Single Supply
·Operating Voltage (+3V~+15V)
·High Output Current (70mA)
·Slew Rate (1.0V/ms typ.)
·Bipolar Technology


Pinout

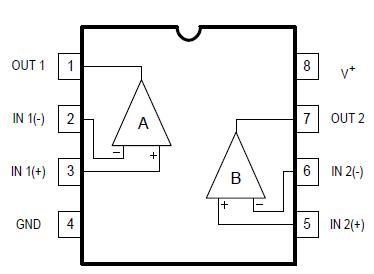

Connection Diagram


Specifications

PARAMETER SYMBOL VALUE
UNIT
Supply Voltage V+(V+/V-) 15V (or +-7.5) V
Differential Input Voltage VID 15 V
Input Voltage VI -0.3 ~ +15 V
Power Dissipation Pd 300 mW
Operating Temperature Topr -20~+75 °C
Storage Temperature Tstr -40~+125 °C



Description

The UTC 3414 integrated circuit is a high gain, high output current, high output voltage swing dual operational amplifier capable of driving 70mA.
