Product Details

Description



Features:

(For V1 =5V and V=0V. Typical Unless Otherwise Noted)
`Guaranteed 2.7V and 5V Performance
`No Crossover Distortion
`Space Saving Package
`Industrial Temp. Range
`Gain-Bandwidth Product
`Low Supply Current: 210A
`Rail-to-Rail Output Swing @10k Load V1-10mV V +65mV
`VCM -0.2V to V1 0.8V


Application

·Active Filters
·General Purpose Low Voltage Applications
·General Purpose Portable Devices


Pinout

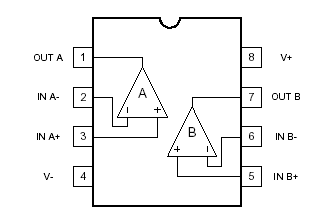

Connection Diagram


Specifications

PARAMETER
VALUE
UNIT
ESD Tolerance(Note 2)
Machine Model
100
V
Human Body Model
2000
V
Differential Input Voltage
+-Supply Voltage
Supply Voltage (V1-V)
5.5
V
Output Short Circuit to V1
(Note 3)
Output Short Circuit to V
(Note 4)
Mounting Temp.
Lead Temp. (Soldering 10 sec)
260
Infrared (15 sec)
215
Storage Temp. Range
-65 to 150
Junction Temp. (Tj, max) (Note 5)
150





Description

The UTCLMV358 are low voltage (2.7-5.5V) versions of the dual and quad commodity op amps, LM358, which currently operate at 5-30V. The LMV358 are the most cost effective solutions for the applications where low voltage operation, space saving and low price are needed. They offer specifications that meet or exceed the familiar LM358. The LMV358 have rail-to-rail output swing capability and the input common-mode voltage range includes ground. They alll exhibit excellent speed-power ratio of the UTCLMV358, achieving 1 MHz of bandwidth and 1 V/ms of slew rate with low supply current. The chips are built with National' s advanced submicron silicon-gate BiCMOS process. The LMV358 have bipolar input and output stages for improved noise performance and higher output current drive.
