Product Details

Description



Features:

·Internally frequency compensated for unity gain.
·Wide power supply range 3V - 32V.
·Input common-mode voltage range include ground.
·Large DC voltage gain.


Application

·General purpose amplifier.
·Transducer amplifier.

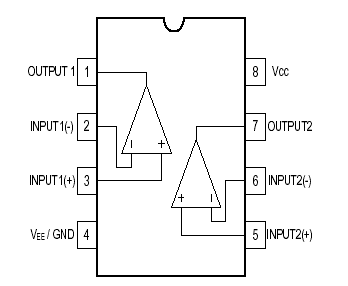

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNIT
Supply Voltage
VCC
+-16 or 32
V
Differential Input Voltage
VI(Diff)
+-32
V
Input Voltage
VI
-0.3 ~ +32
V
Output Short to Ground
Continuous

Operating Temperature Range
Topr
0~+70
Storage Temperature Range
Tstg
-65 to 150



Description

The UTCLM358 consists of two independent high gain, internally frequency compensated operational amplifier. It can
be operated from a single power supply and also split power supplies.
