UTCA2804

Features: ·Easy operation either through the AC line or a DC supply.·Supply voltage control.·Very few external components.·Symmetrical burst control-No DC current components in the load circuit·Negative output current pulse up to 250mA-short circuit protection.·Reference voltage outputPinoutSpecif...

product image

UTCA2804 Picture
See larger image
SeekIC No. : 004539263 Detail

UTCA2804: Features: ·Easy operation either through the AC line or a DC supply.·Supply voltage control.·Very few external components.·Symmetrical burst control-No DC current components in the load circuit·Nega...

UTCA2804 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UTCA2804
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Easy operation either through the AC line or a DC supply.
·Supply voltage control.
·Very few external components.
·Symmetrical burst control-No DC current components in the load circuit
·Negative output current pulse up to 250mA-short circuit protection.
·Reference voltage output

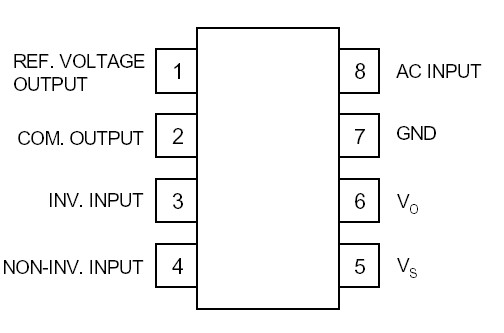

Pinout

Connection Diagram


Specifications

Parameter Symbol RATINGS UNIT
Supply Voltage
Supply Current
Synchronous Current
Input Voltage
Power Dissipation
Junction Temperature
Operating Ambient Temperature
Storage Temperature
-Vs
-Is
ISYN
VI
PD
TJ
Topr
TsTG
8.2
40(average)
5.0(rms)
IVsI
350
125
-20 ~ +70
-65 ~ +150
V
mA
mA
V
mW
° Connection Diagram
° Connection Diagram
° Connection Diagram



Description

The UTCA2804 is a TRIAC controller providing a complete solution for temperature controlled electric panel heaters, cookers, film processing baths etc.

Switching occurs at the zero voltage point in order to minimize radio frequency interference. The device is suitable for mains-on-line operation and requires minimal components.
