Product Details

Description



Features:

` Analog Voltage Range (VDD VEE) = 3.0 ~ 18 V Note: VEE must beVSS
` Linearized Transfer Characteristics
` PintoPin Replacement for CD4053

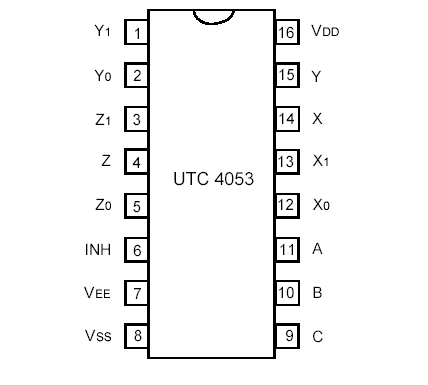

Pinout

Connection Diagram


Specifications

                                         PARAMETER
SYMBOL
RATINGS
UNIT
DC Supply Voltage (Referenced to VEE, VSSVEE)
VDD
-0.5 ~ +18.0
V

Input or Output Voltage (DC or Transient) (Referenced to VSS
for Control Inputs and VEE for Switch I/O)
Vin, Vout
-0.5 ~ VDD +0.5
V
Input Current (DC or Transient), per Control Pin
Iin
±10
mA
Switch Through Current
ISW
±25
mA
Power Dissipation. Per Package**
PD
500
mW
Storage Temperature
Tstg
-65 ~ +150
Lead Temperature (8 - Second Soldering)
TLead
260
* Maximum Ratings are those values beyond which damage to the device may occur.
** Temperature Derating: "DIP and SOP" Packages: 7.0 mW/ From 65 ~ 125


Description

The UTC4053 are Triple SPDT analog multiplexers for application as digitallycontrolled analog switches.
