UTC3414

Features: *Single Supply*Operating Voltage (+3V~+15V)*High Output Current (70mA)*Slew Rate (1.0V/s typ.)*Bipolar TechnologyPinoutSpecifications PARAMETER SYMBOL VALUE UNIT Supply Voltage V+(V+/V-) 15V (or +-7.5) V Differential Input Voltage VID 15 V Input...

product image

UTC3414 Picture
See larger image
SeekIC No. : 004539235 Detail

UTC3414: Features: *Single Supply*Operating Voltage (+3V~+15V)*High Output Current (70mA)*Slew Rate (1.0V/s typ.)*Bipolar TechnologyPinoutSpecifications PARAMETER SYMBOL VALUE UNIT Supply ...

UTC3414 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UTC3414
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Single Supply
*Operating Voltage (+3V~+15V)
*High Output Current (70mA)
*Slew Rate (1.0V/s typ.)
*Bipolar Technology

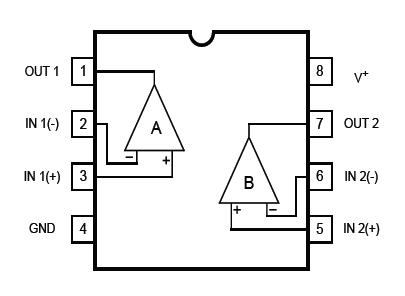

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNIT
Supply Voltage
V+(V+/V-)
15V (or +-7.5)
V
Differential Input Voltage
VID
15
V
Input Voltage
VI
-0.3 ~ +15
V
Power Dissipation
PD
300
mW
Operating Temperature
Topr
-20 to +75
Storage Temperature
Tstg
-40 to +125



Description

The UTC3414 integrated circuit is a high gain, high output current, high output voltage swing dual operational amplifier capable of driving 70mA.
