UT7R995

Features: ` +3.3V Core Power Supply`+2.5V or +3.3V Clock Output Power Supply- Independent Clock Output Bank Power Supplies` Output frequency range: 6 MHz to 200 MHz` Bank pair output-output skew < 100 ps` Cycle-cycle jitter < 50 ps` 50% ± 2% maximum output duty cycle at 100MHz` Eight LVTTL o...

product image

UT7R995 Picture
SeekIC No. : 004539113 Detail

UT7R995: Features: ` +3.3V Core Power Supply`+2.5V or +3.3V Clock Output Power Supply- Independent Clock Output Bank Power Supplies` Output frequency range: 6 MHz to 200 MHz` Bank pair output-output skew <...

floor Price/Ceiling Price

Part Number:
UT7R995
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` +3.3V Core Power Supply
` +2.5V or +3.3V Clock Output Power Supply
- Independent Clock Output Bank Power Supplies
` Output frequency range: 6 MHz to 200 MHz
` Bank pair output-output skew < 100 ps
` Cycle-cycle jitter < 50 ps
` 50% ± 2% maximum output duty cycle at 100MHz
` Eight LVTTL outputs with selectable drive strength
` Selectable positive- or negative-edge synchronization
` Selectable phase-locked loop (PLL) frequency range and lock indicator
` Phase adjustments in 625 to 1300 ps steps up to ± 7.8 ns
` (1-6,8,10,12) x multiply and (1/2,1/4) x divide ratios
` Compatible with Spread-Spectrum reference clocks
` Power-down mode
` Selectable reference input divider
` Radiation performance
- Total-dose tolerance: 100 krad (Si)
- SEL Immune to a LET of 109 MeV-cm2/mg
- SEU Immune to a LET of 109 MeV-cm2/mg
` Military temperature range: -55 to +125
` Extended industrial temp: -40 to +125
` Packaging options:
- 48-Lead Ceramic Flatpack
` Standard Microcircuit Drawing: 5962-05214
- QML-Q and QML-V compliant part



Pinout

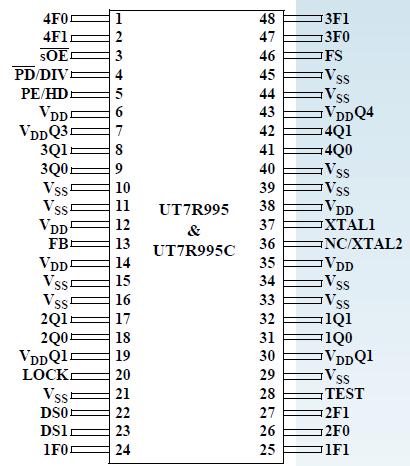

  Connection Diagram


Specifications

Symbol
Description
Limits
Units
VDD
Core Power Supply Voltage
-0.3 to 4.0
V
VDDQ1,VDDQ3,and VDDQ4
Output Bank Power Supply Voltage
-0.3 to 4.0
V
VIN
Voltage Any Input Pin
-0.3 to VDD + 0.3
V
VOUT
Voltage Any Clock Bank Output
-0.3 to VDDQn + 0.3
V
VO
Voltage on XTAL2 and LOCK Outputs
-0.3 to VDD + 0.3
V
II
DC Input Current
+10
mA
PD
Maximum Power Dissipation
1.5
W
TSTG
Storage Temperature
-65 to +150
°C
TJ
Maximum Junction Temperature 2
+150
°C
JC
Thermal Resistance, Junction to Case
15
°C/W
ESDHBM
ESD Protection (Human Body Model) - Class II
3000
V

Notes:
1. Stresses outside the listed absolute maximum ratings may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at these or any other conditions beyond limits indicated in the operational sections of this specification is not recommended. Exposure to absolute maximum rating conditions for extended periods may affect device reliability and performance.
2. Maximum junction temperature may be increased to +175°C during burn-in and steady-static life.
