UT62L1024

Features: ` Access time : 35/55/70ns (max.)` Low power consumption : Operating : 40/35/30 mA (typical) Standby : 2.5A (typical) L-version 0.5A (typical) LL-version` Power supply range : 2.7V to 3.6V` All inputs and outputs TTL compatible` Fully static operation` Three state outputs` Data retention...

product image

UT62L1024 Picture
See larger image
SeekIC No. : 004539096 Detail

UT62L1024: Features: ` Access time : 35/55/70ns (max.)` Low power consumption : Operating : 40/35/30 mA (typical) Standby : 2.5A (typical) L-version 0.5A (typical) LL-version` Power supply range : 2.7V to 3.6V...

UT62L1024 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UT62L1024
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Access time : 35/55/70ns (max.)
` Low power consumption : Operating : 40/35/30 mA (typical) Standby : 2.5A (typical) L-version 0.5A (typical) LL-version
` Power supply range : 2.7V to 3.6V
` All inputs and outputs TTL compatible
` Fully static operation
` Three state outputs
` Data retention voltage : 2V (min.)
` Package : 32-pin 600 mil PDIP 32-pin 450 mil SOP 32-pin 8x20 mm TSOP-1 32-pin 8x13.4 mm STSOP

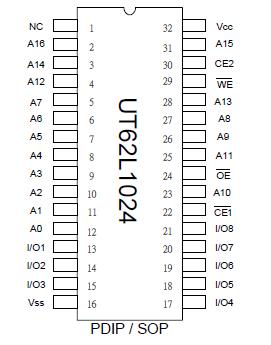

Pinout

Connection Diagram


Specifications

Symbol PARAMETER
RATING
Unit
VTERM Terminal Voltage with Respect to Vss
0.5 to +4.6
V
TA OperatingTemperature
0 to +70
°C
TSTG StorageTemperature
65 to +125
°C
PD Power Dissipation
1
W
IOUT DC OutputCurrent
50
mA
Tsolder Soldering Temperature (under 10 sec)
260

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The UT62L1024 is a 1,048,576-bit low power CMOS static random access memory organized as 131,072 words by 8 bits. It is fabricated using high performance, high reliability CMOS technology.

Easy memory expansion is provided by using two chip enable input.( CE1 ,CE2) It is particularly well suited for battery back-up nonvolatile memory application.

The UT62L1024 operates from a single 2.7V~ 3.6V power supply and all inputs and outputs are fully TTL compatible.
