Product Details

Description



Features:

` Access time : 35/70ns (max.)
` Low power consumption : Operating : 45/30 mA (typ.) CMOS Standby : 2mA (typ.) normal 2 A (typ.) L-version 1 A (typ.) LL-version
` Single 4.5V~5.5V power supply
` Operating temperature : Commercial : 0~70
` All inputs and outputs TTL compatible
` Fully static operation
` Three state outputs
` Data retention voltage : 2V (min.)
` Package : 28-pin 600 mil PDIP 28-pin 330 mil SOP


Pinout

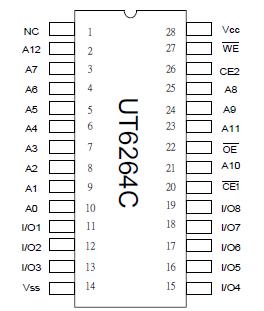

Connection Diagram


Specifications

Symbol PARAMETER
RATING
Unit
VTERM Terminal Voltage with Respect to Vss
0.5 to +7.0
V
TA OperatingTemperature
0 to +70
°C
TSTG StorageTemperature
65 to +125
°C
PD Power Dissipation
1
W
IOUT DC OutputCurrent
50
mA
Tsolder Soldering Temperature (under 10 sec)
260

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The UT6264C is a 65,536-bit low power CMOS static random access memory organized as 8,192 words by 8 bits. It is fabricated using high performance, high reliability CMOS technology.

Easy memory expansion is provided by using two chip enable input.( CE1 ,CE2) ,and supports low data retention voltage for battery back-up operation with low data retention current. The UT6264C operates from a single 4.5V~5.5V power supply and all inputs and outputs are fully TTL compatible.
