UT22VP10

Features: · High speed Universal RADPAL - tPD: 15.5ns, 20ns, 25ns maximum - fMAX1: 33MHz maximum external frequency - Supported by industry-standard programmer - Amorphous silicon anti-fuse· Asynchronous and synchronous RADPAL operation - Synchronous PRESET - Asynchronous RESET· Up to 22 input and...

product image

UT22VP10 Picture
SeekIC No. : 004539044 Detail

UT22VP10: Features: · High speed Universal RADPAL - tPD: 15.5ns, 20ns, 25ns maximum - fMAX1: 33MHz maximum external frequency - Supported by industry-standard programmer - Amorphous silicon anti-fuse· Asynchr...

floor Price/Ceiling Price

Part Number:
UT22VP10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High speed Universal RADPAL - tPD: 15.5ns, 20ns, 25ns maximum - fMAX1: 33MHz maximum external frequency - Supported by industry-standard programmer - Amorphous silicon anti-fuse
· Asynchronous and synchronous RADPAL operation - Synchronous PRESET - Asynchronous RESET
· Up to 22 input and 10 output drivers may be configured - CMOS & TTL-compatible input and output levels - Three-state output drivers
· Variable product terms, 8 to 16 per output
· 10 user-programmable output macrocells - Registered or combinatorial operation - Output driver polarity control selectable - Two feedback paths available
· Radiation-hardened process and design; total dose irradiation testing to MIL-STD-883, Method 1019 - Total dose: 1.0E6 rads(Si) - Upset threshold 50 MeV-cm2/mg (min) - Latchup immune(LET>109 MeV-cm2/mg)
· QML Q & V compliant
· Packaging options: - 24-pin 100-mil center DIP (0.300 x 1.2) - 24-lead flatpack (.45 x .64) - 28-lead quad-flatpack (.45 x .45)
· Standard Military Drawing 5962-94754 available



Pinout

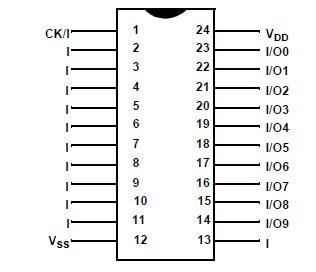

  Connection Diagram


Specifications

Symbol
Parameter
LIMIT
Unit
VDD
Supply voltage
-0.3 to 7.0
V
VI/O2
Input voltage any pin
-0.3 to +7.0
V
TSTG
Storage Temperature range
-65 to +150
TJ
Maximum junction temperature
+175
TS
Lead temperature (soldering 10 seconds)
+300
JC
Thermal resistance junction to case
20
/W
II
DC input current
±10
mA
PD3
Maximum power dissipation
1.6
W
IO
Output sink current
12
mA



Description

The UT22VP10 RADPAL is a fuse programmable logic array device. The familiar sum-of-products (AND-OR) logic structure is complemented with a programmable macrocell. The UT22VP10 is available in 24-pin DIP, 24-lead flatpack, and 28-lead quad-flatpack package offerings providing up to 22 inputs and 10 outputs. Amorphous silicon anti-fuse technology provides the programming of each output. The user specifies whether each of the potential outputs is registered or combinatorial. Output polarity is also individually selected, allowing for greater flexibility for output configuration. A unique output enable function allows the user to configure bidirectional I/O on an individual basis.

The UT22VP10 architecture implements variable sum terms providing 8 to 16 product terms to outputs. This feature provides the user with increased logic function flexibility. Other features include common synchronous preset and asynchronous reset. These features eliminate the need for performing the initialization function.

The UT22VP10 provides a device with the flexibility to implement logic functions in the 500 to 800 gate complexity. The flexible architecture supports the implementation of logic functions requiring up to 21 inputs and only a single output or down to 12 inputs and 10 outputs. Development and programming support for the UT22VP10 is provided by DATA I/O.
