UT12005

Features: 1. Meets IEEE 802.3 and ANSI X.3.263 standards including 350uH OCL with 8mA bias2. Designed for reflow soldering at temperature 230±53. Compact footprint for use in the most space restrictive applications4. Turns Ratio tolerance: ±5%5. Operating temperature: -40 to +85PinoutSpecification...

product image

UT12005 Picture
See larger image
SeekIC No. : 004539025 Detail

UT12005: Features: 1. Meets IEEE 802.3 and ANSI X.3.263 standards including 350uH OCL with 8mA bias2. Designed for reflow soldering at temperature 230±53. Compact footprint for use in the most space restrict...

UT12005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UT12005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1. Meets IEEE 802.3 and ANSI X.3.263 standards including 350uH OCL with 8mA bias
2. Designed for reflow soldering at temperature 230±5
3. Compact footprint for use in the most space restrictive applications
4. Turns Ratio tolerance: ±5%
5. Operating temperature: -40 to +85



Pinout

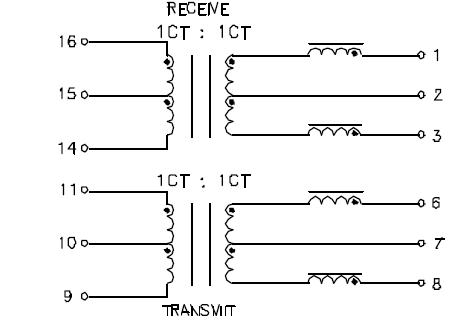

Connection Diagram


Specifications

1. OCL: 350uH min. 100KHz ,0.1Vrms,8mA Pin(1-3), Pin(6-8)
2. Turns Ratio tolerance:±3%, Pin(1-3):(16-14), Pin(6-8):(11-9)
3. Pri. DCR: 0.9W max. Pin(9-11), Pin(14-16)
4. LL: 0.4uH max. Pin(1-3), Pin(6-8) 1MHz , 1Vrms
5. Cw/w: 35pF max. Pri. to Sec. 1MHz, 1Vrms
6. Insertion Loss: -1.1dB Max. @ 0.10--100MHz
7. Return Loss: -18dB Min. @ 0.5--30MHz
-15.5dB Min. @ 40MHz
-13.6dB Min. @ 50MHz
-12dB Min. @ 60--80MHz
8. Com. to Com. Mode Rejection: -40dB typ. @ 0.10--100MHz
9. Crosstalk: -40dB min. @ 0.10--100MHz
10. HI-POT: 1500Vrms/2sec. Leakage Current 0.5mA Max./input to output
