USS-820D

Features: ` Full compliance with the Universal Serial Bus Specification Revision 1.1.` Backward compatible with USS-820B and USS-820C revisions.` Self-powered or bus-powered USB device. Meets USB power specifications for bus-powered devices.` Full-speed USB device (12 Mbits/s).` USB device control...

product image

USS-820D Picture
See larger image
SeekIC No. : 004538920 Detail

USS-820D: Features: ` Full compliance with the Universal Serial Bus Specification Revision 1.1.` Backward compatible with USS-820B and USS-820C revisions.` Self-powered or bus-powered USB device. Meets USB po...

USS-820D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
USS-820D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Full compliance with the Universal Serial Bus  Specification Revision 1.1.
` Backward compatible with USS-820B and USS-820C revisions.
` Self-powered or bus-powered USB device. Meets USB power specifications for bus-powered devices.
` Full-speed USB device (12 Mbits/s).
` USB device controller with protocol control and administration for up to 16 USB endpoints.
` Supports control, interrupt, bulk, and isochronous transfers for all 16 endpoints.
` Programmable endpoint types and FIFO sizes and internal 1120-byte logical (2240-byte physical for dual-packet mode) shared FIFO storage allow a wide variety of configurations.
` Dual-packet mode of FIFOs reduces latency.
` Supports USB remote wake-up feature.
` On-chip crystal oscillator allows external 12 MHz crystal or 3 V/5 V clock source.
` On-chip analog PLL creates 48 MHz clock from internal 12 MHz clock.
` Integrated USB transceivers.
` 5 V tolerant I/O buffers allow operation in 3 V or 5 V system environments for 0 °C to 70 °C temperature range.
` 5 V tolerant I/O buffers allow operation in 3 V only system environments for –20 °C to +85 °C temperature range.
` Implemented in Agere Systems Inc. 0.25 m, 3 V standard-cell library.
` 44-pin MQFP (USS-820D).
` 48-pin TQFP (USS-820TD).
` Evaluation kit available.


Application

· Suitable for peripherals with embedded microprocessors.
· Glueless interface to microprocessor buses.
· Support of multifunction USB implementations, such as printer/scanner and integrated multimedia applications.
· Suitable for a broad range of device class peripherals in the USB standard.


Pinout

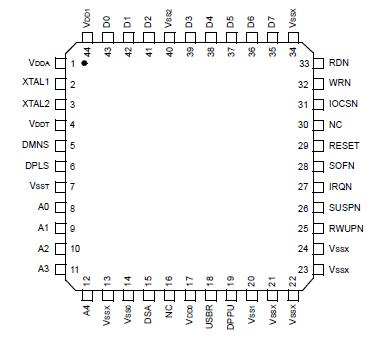

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Ambient Operating Temperature Range
TA
-20
85
°C
Storage Temperature
Tstg
−40
125
°C
Power Supply Voltage with Respect to Ground
VDD
4.2
V
