Features:

USB-IF "Hi-Speed" certified to USB2.0 electrical  specification
Interface compliant with the UTMI specification (60MHz 8-bit unidirectional interface or 30MHz 16-bit bidirectional interface)
Supports 480Mbps High Speed (HS) and 12Mbps
Full Speed (FS) serial data transmission rates
Integrated 45 and 1.5k termination resistors  reduce external component count
Internal short circuit protection of DP and DM lines On-chip oscillator operates with low cost 12MHz crystal
Robust and low power digital clock and data recovery circuit
SYNC and EOP generation on transmit packets and  detection on receive packets
NRZI encoding and decoding
Bit stuffing and unstuffing with error detection
Supports the USB suspend state, HS detection, HS  Chirp, Reset and Resume
Support for all test modes defined in the USB2.0  specification
Draws 72mA (185mW) maximum current  consumption in HS mode - ideal for bus powered  functions
On-die decoupling capacitance and isolation for  immunity to digital switching noise
Available in three 64-pin TQFP packages (GT3200)  or a 56-pin QFN package (USB3250)
Full industrial operating temperature range from -40° C to +85 °C (ambient)


Application

The Universal Serial Bus (USB) is the preferred interface to connect high-speed PC peripherals.
Scanners
Printers
External Storage and System Backup
Still and Video Cameras
PDAs
CD-RW
Gaming Devices


Pinout

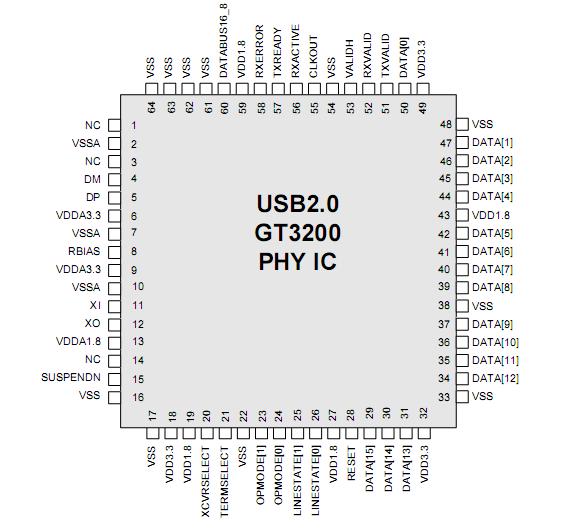

Connection Diagram


Specifications

PARAMETER SYMBOL
 CONDITIONS MIN TYP MAX Units

1.8V Supply Voltage
(VDD1.8 and VDDA1.8)

 VDD1.8   -0.5

TBD

 V
3.3V Supply Voltage
(VDD3.3 and VDDA3.3)

 VDD3.3   -0.5   4.6 V
Input Voltage
 VI   -0.5   4.6 V
Storage Temperature TSTG   -40   +125 °C
1] Equivalent to discharging a 100pF capacitor via a 1.5k resistor (HBM).



Description

The GT3200 and USB3250 are USB2.0 physical layer transceiver (PHY) integrated circuits.  SMSC's proprietary technology results in low power dissipation, which is ideal for building a bus powered USB2.0 peripheral.  The PHY can be configured for either an 8-bit unidirectional or a 16-bit bidirectional parallel interface, which complies with the USB Transceiver Macrocell Interface (UTMI) specification. USB3250supports 480Mbps transfer rate, while remaining backward compatible with USB 1.1 legacy protocol at 12Mbps.

All required termination for the USB3250 Transceiver is internal. Internal 5.25V short circuit protection of DP and DM lines is provided for USB compliance.

While transmitting data, the PHY serializes data and generates SYNC and EOP fields. The USB3250 also performs needed bit stuffing and NRZI encoding.  Likewise, while receiving data, the PHY de-serializes incoming data, stripping SYNC and EOP fields and performs bit un-stuffing and NRZI decoding.
