USB002

Features: ` ESD Protection > 40 kilovolts` 225 Milliwatt Continuous Power Dissipation` Provides Two (2) Lines of Protection` Low Leakage Current < 1.0A` Ultra Low Capacitance: 0.6pF` RoHS CompliantApplication· USB Interface Ports· Cellular Phones· Video· Handheld Electronics· Personal Comput...

product image

USB002 Picture
SeekIC No. : 004538739 Detail

USB002: Features: ` ESD Protection > 40 kilovolts` 225 Milliwatt Continuous Power Dissipation` Provides Two (2) Lines of Protection` Low Leakage Current < 1.0A` Ultra Low Capacitance: 0.6pF` RoHS Comp...

floor Price/Ceiling Price

Part Number:
USB002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` ESD Protection > 40 kilovolts
` 225 Milliwatt Continuous Power Dissipation
` Provides Two (2) Lines of Protection
` Low Leakage Current < 1.0A
` Ultra Low Capacitance: 0.6pF
` RoHS Compliant



Application

· USB Interface Ports
· Cellular Phones
· Video
· Handheld Electronics
· Personal Computers



Pinout

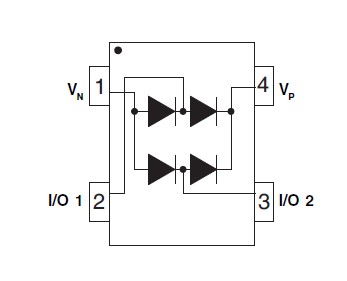

  Connection Diagram


Specifications

Parameter Symbol VALUE Unit
Operating temperature TJ -55 to 150
Storage temperature TSTG -55 to 150
Continuous Power Dissipation PPC 225 mW
Repetitive Peak Forward Current @ tp = 5s, F = 50kHz (Pin 1-2) IFRM 700 mA
