Features:

` 100 A MAX operating current
` 5A MAX standby current
` 3.5V ~ 5.5V operating range
` Two P-channel power MOSFET control switch
`Over-current protection
` Under-voltage lockout circuit
` Thermal shutdown circuit
` Soft-start circuit
`Flag indicates fault conditions


Pinout

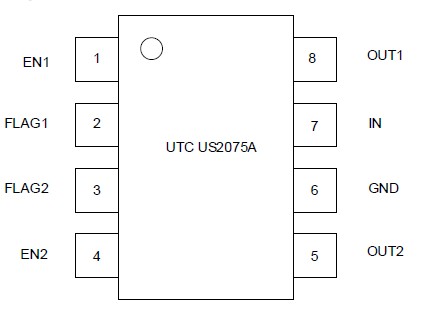

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
Input Voltage
VIN
-0.3 ~ +6
V
FLAG Voltage
VFLAG
-0.3 ~ +6
V
FLAG Current
IFLAG
50
mA
Output Voltage
VOUT
VIN+0.3
V
Output Current
IOUT
-0.1 ~ +0.5
A
Control Input
VEN
-0.3 ~ +6
V
Total Power Dissipation
PD
300
mW
Junction Temperature
TJ
+150
Operating Temperature
TOPR
-40 ~ +85
Storage Temperature
TSTG
-55 ~ +150

Note Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute
maximum ratings are stress ratings only and functional device operation is not implied.




Description

The UTC US2075A is a dual channel power switch with independent enable and flag functions, optimized for bus-powered Universal Serial Bus (USB) and self-powered applications.

This US2075A satisfies USB voltage drop requirement with soft start, which eliminates the momentary voltage drop on the upstream port that may occur.

In addition, the UTC US2075A is equipped with over-temperature and over-current detectors, each flag output is available to indicate fault conditions independently to the USB controller. The UTC US2075A is available in active-low versions in 8-pin SOP package.
